Read EEPROM BMW FEM M95128 with Autel IM608

Test report: Autel MaxiIM IM608 is confirmed to read out EEPROM M95128 from the BMW FEM system.

Connection:
All connection should be good before data reading
autel-im608-bmw-fem-95128-eeprom-1
Menu:
In Autel IM608 software, pls go to IMMOBILIZER
then accept agreement
autel-im608-bmw-fem-95128-eeprom-2
Select BMW – SYSTEM SELECTION – IMMOBILIZER – FEM/BDC IMMOBILIZER
autel-im608-bmw-fem-95128-eeprom-3

autel-im608-bmw-fem-95128-eeprom-4

autel-im608-bmw-fem-95128-eeprom-5

autel-im608-bmw-fem-95128-eeprom-6
Then select EEPROM operation – Diagram
autel-im608-bmw-fem-95128-eeprom-7

autel-im608-bmw-fem-95128-eeprom-8
Diagram in Autel Im608:
FEM M95128:
EEPROM position on the FEM system
autel-im608-bmw-fem-95128-eeprom-9

autel-im608-bmw-fem-95128-eeprom-10
BDC M95256:
EEPROM position on the BDC system
autel-im608-bmw-fem-95128-eeprom-11
Pin 1 position on EEPROM
autel-im608-bmw-fem-95128-eeprom-12
Process of reading eerpom:
Read M95128 EEPROM
autel-im608-bmw-fem-95128-eeprom-13

autel-im608-bmw-fem-95128-eeprom-14

autel-im608-bmw-fem-95128-eeprom-15

autel-im608-bmw-fem-95128-eeprom-16

autel-im608-bmw-fem-95128-eeprom-17
Result:
MaxiIM IM608 read EEPROM 95128 successfully!

Friday, December 13, 2019

How to Read ST95040 using Autel XP400 and IM600

Back in October I received my free upgrade for my Autel IM600 *XP400* to replace the *UP400*
im600-xp400-read-st95040-1


I made a post that shows the New and improved XP400 reading a ST95040 Eeprom “In-circuit” with success, HOWEVER I wanted to show another video of the XP400 messing up a Eeprom *95080*. I was able to re-write the data to that corrupted Eeprom with another tool from an original dump that I saved.
im600-xp400-read-st95040-2

im600-xp400-read-st95040-3
REMEMBER
Step 1 in Eeprom work is to always save the original dump/read
My step 2 is perform another read and save that dump then compare the original to the second dump and if those files are the same then you can play around with other questionable tooling.

When I was reading the 95080 Eeprom with the new and improved XP400 I attempted to read the device in the default state (5volts) which the reader is set to. Needless to say the dump came back as all FFFF’s. I proceeded to adjust the voltage down to 3.3 volts (in voltage settings) and again performed another read…. this time the read came back correctly. However when I adjusted the voltage back up to 5volts and attempted another read it corrupted the dump. (The IM600/XP400 mentions it can damage the device) I then re-wrote the original saved bin file back to the Eeprom with a different Mini programmer without issues .
im600-xp400-read-st95040-4
So before you think that the new and improved XP400 works like a charm you have to be careful on how you use it. Having the data sheet on the device your working on always helps to identify what voltage the programmer should be set to for reading and writing. The XP400/IM600/IM608 still needs work on the Eeprom side.. it appears they are making some improvements but are not quite there yet.

Credits to ‎Kevin Suttorp‎

Monday, December 9, 2019

Autel IM608 Program Mercedes Sprinter W906 Key

Autel MaxiIM IM608 Program Mercedes Sprinter W906 Key success. read password no problem
add spare key okay
cut key by Xhorse dolphin xp005 key cutting machine
autel-im608-benz-w906-add-key-1

autel-im608-benz-w906-add-key-2

autel-im608-benz-w906-add-key-3

autel-im608-benz-w906-add-key-4

autel-im608-benz-w906-add-key-5

autel-im608-benz-w906-add-key-6

autel-im608-benz-w906-add-key-7

dolphin-xp005-cut-benz-w906-key-1

dolphin-xp005-cut-benz-w906-key-2

Saturday, December 7, 2019

Autel IM608 and G Box Program W204 C220 All Keys Lost

New feedback: With Autel IM608 last Update Mercedes Benz Software do all key lost W204 C220 CDI with EIS W207 type succeed computing password in 3 minutes with G-BOX 1 and key programed correctly!

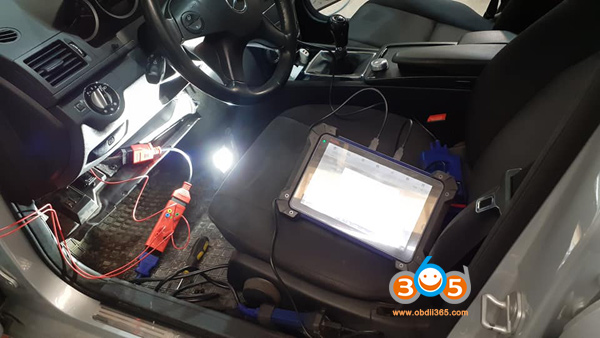

 Autel G Box connection:

k line of the gbox to the connector of the elv and relay of the gbox to the module Sam striker fuse 27 I think I remember and the gbox connected to the port obd2 of the car comes explained the scheme of connections
autel-im608-g-box-w204-akl-1

autel-im608-g-box-w204-akl-2
Get password:
Collecting data and calculating password is in progress. Please wait. The process takes 10-50min (it takes longer for part of vehicles). Please ensure that the device and vehicle battery are stable and sufficient during the process.
autel-im608-g-box-w204-akl-3

autel-im608-g-box-w204-akl-4
3 red wire:
2 goes to fuse in front sam fuse 27 and the other wire red goes to pin KLine on ELV connector


XP400 connection:
autel-xp400-w204-akl-1
Key info:
autel-im608-w204-key-info

Thursday, December 5, 2019

Autel MaxiIM IM608 and G Box Update Mercedes IMMO V3.80

Here's the customer new feedback on Autel MaxiIM IM608 Benz software update v3.80.

Autel IMMO Benz Sprinter Update V3.80  (04/11/2019)
IMMO_Benz
1 Supports the following functions for G-Box: read lock information, repair hopping code, detect EIS status/working key, enable key, disable key, lock replacement (wipe, write, clear TP protection,
ativation, backup codes, write codes)
2.Support all key lost, all key lost (FAST) and key addition for Autel G BOX
3.Reads lock password (W203(K),W463(K),W202(K),W208(K),W210(K),W215(K),W220(K),W230(K)
4.Reads BE key password
5. Directional lock replacement (OBD): read, erase, write, synchronize, clear TP protection, activate/disable key, lock and unlock etc. Supports directional locks, W211(NEC), W209(NEC), W211(Motorola)
6. Fix hopping code, detect EIS status/working key, enable key,disable key, lock replacement (wipe, write, clear TP protection, activation, backup codes, write codes)
supports for no gateway completion(W164/-2008, W251/-2008, W164/2009-, W251/2009-,W169, W209/2006-,W211)
autel-im608-and-g-box-update

Mercedes update Feedback from Mr.Widlak‎.
Just finish testing 3 EIS AKL (all keys lost) with G-BOX:
W210- FAST MODE 4 MIN
W211- FAST MODE 23 MIN
W209- NORMAL MODE 51MIN (did not communicate. under fast mode)

Before update I was able to communicate with all 3 EIS but failed to read a password.
So looks like Autel engineers fix some issues.
I will check some OBD all keys lost soon.
I hope that will help

autel-im608-and-g-box-benz-akl-1

autel-im608-and-g-box-benz-akl-2

autel-im608-and-g-box-benz-akl-3

autel-im608-and-g-box-benz-akl-4

autel-im608-and-g-box-benz-akl-5

autel-im608-and-g-box-benz-akl-6

autel-im608-and-g-box-benz-akl-7

autel-im608-and-g-box-benz-akl-8

Monday, December 2, 2019

Autel MaxiIM IM508 IM608 adds 2018 2019 Ford IMMO

Autel MaxiIM IM608 and IM508 releases new Ford IMMO version V3.0--update Ford till 2019.

Ford IMMO v3.00   11/27/2019
IMMO_Ford
1. Added password free immobilizer function for the following Ford vehicles:
Ecosport (2018-2019), Fiesta(2018-2019), Escape (2019), F250 (2019) and Flex (2019).
2. Added password free immobilizer function for the following Ford South American vehicles:
Courier, EcoSport, Edge, Escape, Escort, Explorer, F150, F250, F350, Fiesta, Gifo, Focus, Fusion, KA, Kuga, Mondeo, Ranger,Transit and Transit Custom.
3. Optimized blade key all key lost function for Fusion (2013-), Ranger, Explorer, F150 and Mustang.
4. Optimized the password free immobilizer function for MY 1999-2004 vehicles F150 and Mustang.
5. Optimized the menu for certain vehicle models.
6. Added operation instructions and materials for certain vehicle models.

Immo_Ford EU
1. Added password free immobilizer function for Ecosport (2018-2019), Fiesta(2018-2019)
2. Optimized blade key all key lost function for Mondeo, Ranger, KA MY vehicle later than 2014.
autel-im608-add-ford-2019
