Autel IM608 Program Dodge RAM 3500 2016 All Keys Lost

How to use Autel MaxiIM IM608 to program an all keys lost scenario on a 2016 Dodge Ram 3500.

Main steps:
Immo status scan
Erase keys and get pin code
Key learning

1) Immo Status Scan

Turn the ignition on
Read and erase existing fault codes

2)
Press Read Pin Code

Turn ignition off and turn on emergency flashers, press OK

Read 4-digit pin code success
3)
Select Key Learning-> Erase Key

Press OK to erase all keys

Turn ignition off and turn on emergency flashers, press OK

All keys have been erased.

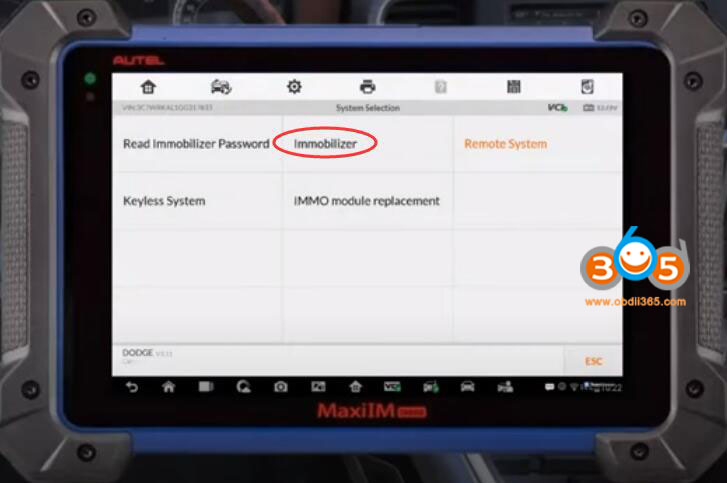

Select System selection->Immobilizer->Immobilizer CAN

Turn the ignition on
Choose Key Learning

Make sure all keys have been erased before learning key. Plae an unprogrammed FOBIK key into the ignition. The ignition should be in the LOCK position.

Autel IM608 learning key in process

Key learning success.
Done.

http://www.key-programmer.org/2020/04/22/program-ram-3500-2016-all-keys-lost-with-autel-im608/

Autel IM608 Reset Honda Accord 2010 Key

How to use Autel MaxiIM IM508/IM608 to reset key on a Honda Accord year 2010.

Select IMMO function->Auto VIN->Manual Selection->Accord->Blade Key->Immobilizer(Honda)

Turn the ignition off.
Identify it is 4th generation immobilizer.
Select Key->Reset Key

The registration or the clearance of the key will be recorded by this function.
At least one registered key is required to reset all key steps.

Insert a registered key and turn on the ignition.
Enter number of keys to be reset

Turn the ignition off.
Turn the ignition on.
Turn the ignition off within 20s.
Turn the ignition on using another key within 20s.

Turn the ignition off within 20s.
Turn the ignition on using the same key within 20s.

Turn the ignition off.
Turn the ignition on.
Check if the immobilizer indicator lamp goes out.
If yes, Turn the ignition off.
Turn the ignition on using a registered key.
The registration of the key is completed. Turn the ignition off.

Check all keys to ensure that all of them can start the engine.

http://www.obdii365.com/wholesale/autel-im608--key-programmer-apb112-GBOX2.html

Autel IM608 Program Range Rover Sport 2012 All Keys Lost

Vehicle model: Land Rover Range Rover Sport 2012
Scenario: All Keys Lost

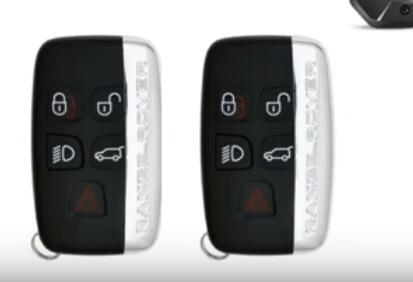

Key type: 5-button smart key
What you need:
Autel MaxiIM IM608 and XP400 programmer
2 smart keys

Procedure:

Read BCM data on bench mode (xp400 is required)
Select Immo Status Scan

Press Start button

Connect USB cable and turn off bluetooth

Read and erase error codes
Click Key Learning "Keyless System (CAN)"->All smart keys lost

Press Start button
Turn ignition off

Identify vehicle information

Identify 00 number of key

All smart keys were erased. Follow prompts to learn new smart keys.
Put the learning smart key on your hand

Press Unlock button of the smart key be learned for 1s within 5s. if the vehicle does not respond,  try a few more times

Learn 1st key succeed, learn next key
Repeat process with second key
Then click Finish.
Test new smart keys.
Done.
