Autel IM608 Update Chrysler Proximity till 2023

 Autel MaxiIM IM508/IM608 released Dodge/Chrysler/Jeep read password / key learning update today.

1. Adds functions including Read Immobilizer Password, and Key Learning for the following smart key-equipped models of 2022-2023: Challenger, Charger, Ram, Ram Truck, Ram 1500
DT, Ram 2500/3500, and Ram 4500/5500.
2. Adds IMMO functions for the following models in South America: ProMaster Van (2013-2023), Ram 4000 (2009-2022), Ram C/V Tradesman (2012-2015), Ram SRT-10 (2004-2006), Ram V1000 (2014-2023), and Ram V700 Express (2014-2020).
3. Optimizes Read Immobilizer Data function, Remove Disabled Keys function. Emergency Start (All Keys Lost) function and guided functions for the following models: Forza
(2013-2016), ProMaster Rapid (2014-2023), Ram 700 (2014-2020), Ram V700 Express (2014-2020), Ram V700 Rapid (2014-2023), and Vision (2015-2018).
4. Optimizes RFH replacement function for second-hand RFH for Challenger, Charge, Journey, Ram, Ram 2500/3500, Ram 4500/5500, and Ram Truck.

Autel IM508 Failed to Backup 2022 Toyota 4Runer IMMO Data?

 One of the obdii365.com customers reported that he failed to program a 2022 Toyota 4Runner US proximity and ran into this problem on the Autel IM508.

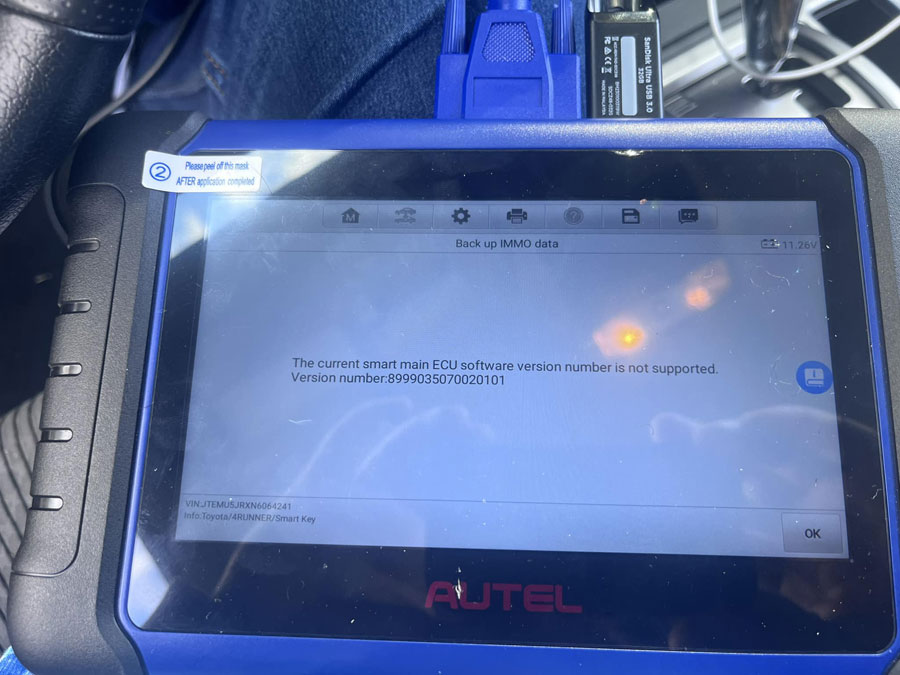

Error: The current smart main ECU software version number is Not Supported?

Solution:

Confirmed by Autel engineer. Autel won’t backup immo data for this software version as it said the ECU software number is not supported.

Autel won’t do it on some of the new ones you’ll have to get a in and out code from a third party and do all keys lost then do add a key.

Get code send to a vendor or nastaf for outcode. Reset box, add key. Will need to send off code again for the outcode. Program key.

Same as SmartPro, it will also ask to input the data through NASTF.





Here is an online resource where you can get Toyota incode and outcode.

Can Autel IM508 Program 2022- Ford F250 F350 Key?

 Question:

Are there any issues with doing newer Push to Start Fords, 2022- F150 F250 F350 with Autel IM508?

Answer:

Looking at the key slot on the door, if its vertical its hu101, if its horizontal its the newer hu198 key and will require dealer tool (NASTF+FDRS).

F150: All new fords from 21 f150 require dealer tool. You can still do the f250, 350,450etc and some of the explorer.



F250, F350: People have done some 2023 f250’s it’s rare you run across one with the new system.



2022 Software change for Mustang, Explorer, Transit, Expedition, and Edge.

Program Volvo XC90 2010 All Keys Lost by Autel IM608

 Program 2010 Volvo XC90 blade key all keys lost successfully using Autel IM608/IM508.

Had to do some surgery on it just to pull the PIN code required to program new keys.

Read CEM Security Data: Remove the CEM module, use the programmer to read and obtain the CEM security data.

Read UEM Mirror Security Data (MC9S12DG128): Remove the UEM module, use the programmer to read and obtain the UEM security data.

Then pull the PIN code, program new key.

Autel IM608 II vs OTOFIX IM2

What’s the Difference between Autel MaxiIM IM608 II (IM608 Pro II) and OTOFIX IM2 universal key programmers?

Check a table comparison below:

Item	Autel IM608 II/IM608 Pro II	OTOFIX IM2
Brand	Autel	OtoFix
IP limitation	No	No
Operating system	Android 10.0	Android 10.0
Memory	4 GBRAM+128GB	Storage 4GB+128GB
Processor	Qualcomm SDM660 Octa-core Processor (2.2GHz )	Qualcomm SDM660 Octa-core Processor  (2.2GHz )
Screen	10.1 inch	10.1 inch
Resolution	1920*1200	1920*1200
Connectivity	BT V5.0 + BR/EDR, USB	BT5.0/USB
Battery	15000mAh	15000mAh
Camera	16 Megapixel	16 Megapixel
VCI	MaxiFlash JVCI+	V1 Flash
Programmer	XP400 Pro	XP1 Pro
Smart Mode & Expert Mode	Yes	Yes
Diagnostic	Full system comprehensive diagnostics	Full system comprehensive diagnostics
Bi-directional (active test)	Yes	Yes
Online Coding	Yes (Mercedes-Benz not included)	Yes (Mercedes-Benz not included)
Offline Coding	Yes	Yes
Service Functions	40+	40+
Hidden Function	Yes. (Mercedes-Benz not included)	Yes. (Mercedes-Benz not included)
Guided Function	Yes. (Mercedes, BMW, JLR are not included)	Yes. (Mercedes, BMW, JLR are not included)
Offline Programming	Yes	Yes
Programmer function	EEPROM reading and writing, MCU reading and writing	EEPROM reading and writing, MCU reading and writing
Immobilizer function	Full immobilizer function	Full immobilizer function
Key tool	Yes	Yes
Key Unlocking	Yes	Yes
Frequency Detection	Yes	Yes
Universal key generation	Yes	Yes
Chip Simulation (Need APB112)	Yes	Yes
CAN FD	Yes, no need converter	Yes (Adapters required）
DoIP	Yes, no need converter	Yes (Adapters required)
Compatible with Gbox2/Gbox3	Yes	Yes
Compatible with APB112	Yes	Yes
Compatible with IMKPA	Yes	Yes
Cloud Service	Report Management	Report Management
Remote Expert	Yes	Yes
Multi-Language	Yes	Yes
AutoVIN/ScanVIN/ Scan License	Yes	Yes
Endoscope	Yes, optional	Yes, optional
Battery tester	Yes, optional BT506	Yes, optional OTOFIX BT1 Lite battery tester
Free Update	1 year free update/2 years free update	2 years free update
Software subscription	$795 per year	$715 per year
Price	$2,788 (1 year update) $3,299 (2 years update)	$2,459 (2 years free update)

In sum:

OTOFIX is a sub-line product of Autel. Otofix IM2 is a cheaper alternative to IM608 Pro II. They have the same function.

The major difference will be

1.IM2 has 2 years of free update in default. IM608 II just 1 year.

2. IM608 II has built-in CAN FD and DoIP protocol. IM2 need an optional adapter.

3. Software subscription for IM2 is cheaper than IM608 II.
