Can I Use Autel J2534 with JLR Topix Cloud?

 Question 1: Can I use Autel VCI j2534 doip interface like the Maxiflash Elite with JLR Topix Cloud or need JLR SDD doip?

Question 2: Autel J2534 has anyone used with jlr pathfinder I have it working with sdd but know pathfinder need doip so not sure if it will work?





Here is the clue.

The J2534 thats comes with it will allow you to connect to the OEM software to do the programming.

If you are using an Autel J2534 device then first download and install Maxi PC Suite on your laptop. After that you need to register your device in that and then you will be able to connect JLR using Autel J2534.



If your J2534 does not have a DoIP protocol, it won’t be able to handle Pathfinder information.

DoIP stands for diagnostics over IP or diagnostics over internet protocol.

One of our clients has a J2534 that came with the IM608, but does not have DoIP protocol,  and it wouldn’t work on 2019 Land rover.
Just wasn’t communicating with the car.  His IM608 JVCI did not have the right protocol did not meet with the landrover specs.





Which Autel J2534 comes with DoIP protocol?

Autel VCI200

Autel VCMI that comes with MSUltra

Autel JVCI+ that comes with IM608 II

New Autel MaxiFlash VCI that comes with Elite II pro,

If comes with JLR SDD, Autel J2534 works fine with JLR SDD. All good. Even programmed ECM completely several times and coded immo functions.
Just tested today.

I had got installed Maxi Suit. Installed JLR SDD 163, restarted and open software until asks for automatic vin detection. Plugged j2534 Autel on usb port, wait 30 seconds. Click on autovin detection and j2534 and interface was detected ok (software sends an error about ignition voltage, obviously because interface was not plugged on a car). Looks like all works perfectly.



If you need a cheaper alternative that works perfectly with JLR Topix Cloud, VNCI JLR DoIP is the best one to go.

VNCI JLR DoIP Topix Cloud Online Programming Confirmed!

Autel IM508 Read Hyundai EON 2012-2019 IMMO Password

 How-to: read Hyundai EON immobilizer pin code (program all keys lost free pin code) with Autel IM608/IM508 with XP400 Pro.



We have Hyundai EON Immobilizer box.

We can read Hyundai EON password of blade key from 2012 to 2019.  For blade keys only. For smart key you can read pin code directly, blade key requires pin code from dump.

*NOTE: Never remove your password from immobilizer after giving VIN number to Hyundai. You have to pay from 3rd party to get your password.

Select IMMO->Hyundai->Europe->EON(HA)->2012-2019 blade key

Read vehicle immo information

It’s 4D 433Mhz blade key.

Go to Hot function

Select Read pin code by dump

This function only supports blade key. As we said, you can read pin code directly from smart key.

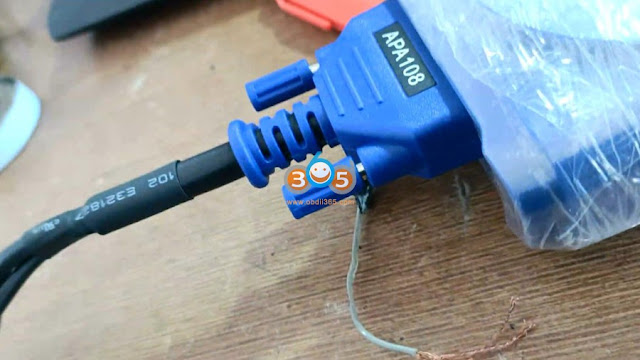

See how to connect wiring. If you have xp400 you should use APA105 cable, if have XP400 Pro you can use direct APB108 cable.

EON has 2 types of IMMO Boxes, check 1st wiring, we have to connect it to 4 pins.

another type 2 wiring has the same connections but you have to put a 1ohm resistor.

Here we got type 1 immo box.  No need of any resistor for type 1 connection.

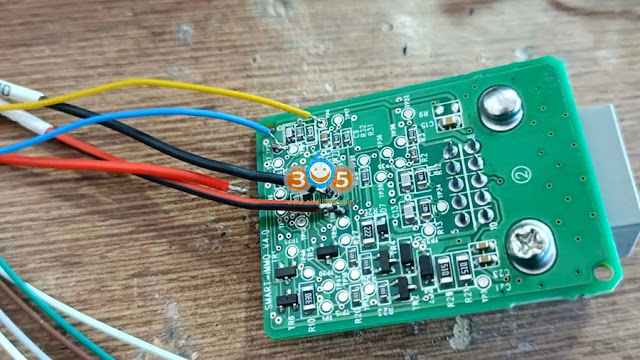

Already solder 4 pins and connected xp400 pro to Autel IM508 via APB108

Read chip data and saved

Read password from dump successfully.

Now you can program key with the pin code.
