Renew Benz W203 ECU CR3.xx with IM508 XP400

 Autel MaxiIM IM508 (with XP400) and IM608 is capable of renewing Mercedes ECU/ISM CR3.xx, CR4.xx CR5.xx, CR6.xx, CR60.xx, CRD.11, CRD2.xx, ME9.7, MED17.7.x, SIM4LE, SIM4LKE, SIM266 etc. This function can be completed only on bench. Some ECUs can be done with or without GBox, some do require the Gbox.



Here is the demo guide on renewing W203 ECU CR3.44 by im508 + xp400 pro.

im508-xp400-renew-w203-ecu-cr3-1


Connect xp400 wires with ECU according to the wiring diagram

im508-xp400-renew-w203-ecu-cr3-2

im508-xp400-renew-w203-ecu-cr3-3

im508-xp400-renew-w203-ecu-cr3-4

In IM508 you select CR3.xx->On bench (or On bench G-box if you use G-box)-> Read engine ECU information

im508-xp400-renew-w203-ecu-cr3-5

im508-xp400-renew-w203-ecu-cr3-6

im508-xp400-renew-w203-ecu-cr3-7

Establishing vehicle communication

im508-xp400-renew-w203-ecu-cr3-8

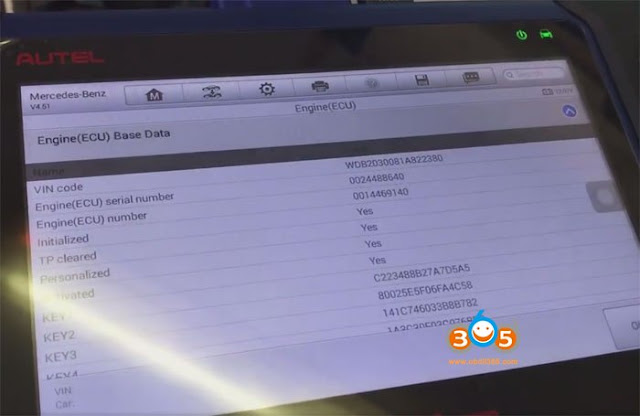

Read ecu information

im508-xp400-renew-w203-ecu-cr3-9

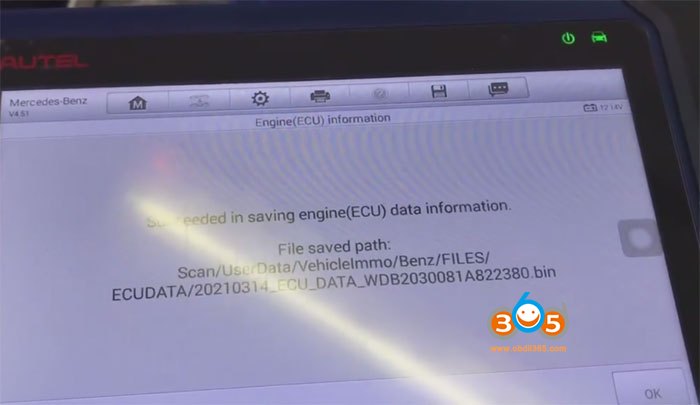

Press OK to save ECU info, always backup ECU data before operation.

im508-xp400-renew-w203-ecu-cr3-10


Select Renew engine (ECU)

im508-xp400-renew-w203-ecu-cr3-11


Autel im508 will ask you if Gbox is used. Here we don’t use Gbox, press NO and continue

im508-xp400-renew-w203-ecu-cr3-12


Enter 16-digit special key password. If you read the key pass before, im508 will auto fill it.

im508-xp400-renew-w203-ecu-cr3-13


Press OK to obtain erase password

im508-xp400-renew-w203-ecu-cr3-14


Network connection is required to calculate password for renewing engine ECU
Establishing vehicle communication

im508-xp400-renew-w203-ecu-cr3-15


Renew ecu is completed
Read ECU information again

im508-xp400-renew-w203-ecu-cr3-16


CR3.44 ECU has been renewed successfully

im508-xp400-renew-w203-ecu-cr3-17
Save new ECU data.
