Program 2008 Volvo XC70 All Keys Lost with Autel IM608

 This is a 2008 Volvo XC70, the client lost all of the keys for the vehicle and we have to program a new semi-smart key to this vehicle with Autel MaxiIM IM608 and XP400 pro.

In order to do so, we need to remove the CEM module or central electrical module which is located behind the glow component.

Program 2008 Volvo XC70 All Keys Lost with Autel IM608 1

it’s behind the glove compartment right over there where you see the m plugs it goes right against the wall firewall and you need to remove the glow compartment.

Now go to immobilizer section with im608, select Volvo- Manual Selection- XC70 – 2008 to 2010- Semi smart key- confirm vehicle information

Program 2008 Volvo XC70 All Keys Lost with Autel IM608 2

Program 2008 Volvo XC70 All Keys Lost with Autel IM608 3

i’m gonna get a control unit- Read CEM security data



We basically have to first read the cem module data okay and then you’re gonna be gonna have to use xp 400 it’s not a very simple programming it might be a little bit confusing for some other people but it’s not hard all you have to do is follow the diagrams follow the instructions and you should be good to go.

Program 2008 Volvo XC70 All Keys Lost with Autel IM608 4

so it’s showing you right now where the CEM module is located and you need to determine what type of sound module you have

in this case this is mine the type two

Program 2008 Volvo XC70 All Keys Lost with Autel IM608 5

there are some other types to check see if yours looks like this one or the other one

I did do my connections on a circuit board according to the wiring diagram.

I did do the connections to the xp400 pro right over here and connected it to my m608

Program 2008 Volvo XC70 All Keys Lost with Autel IM608 6

Let’s minimize

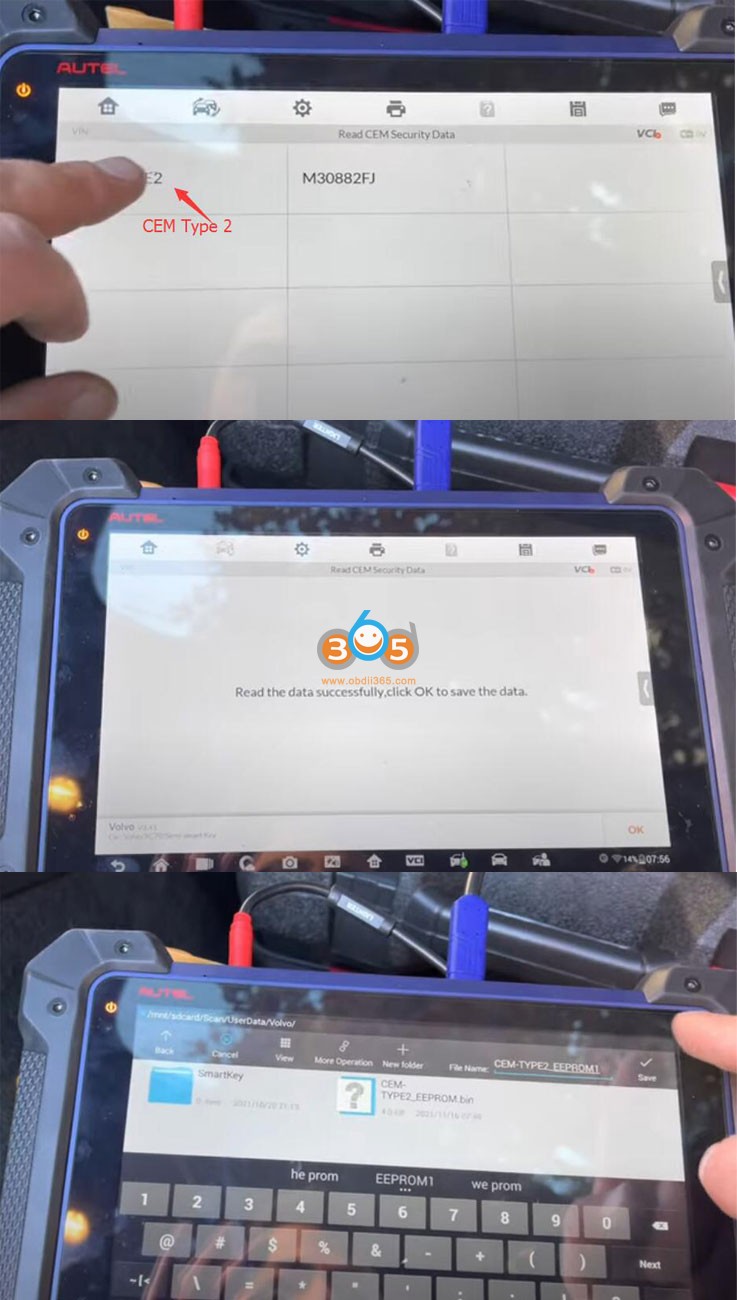

this one for the send type two

and right now it’s going to try to read it out

Program 2008 Volvo XC70 All Keys Lost with Autel IM608 7

okay we did it successfully okay

i’m going to save it on in here

Program 2008 Volvo XC70 All Keys Lost with Autel IM608 8

IM608 says decryption succeeded, not need to read M30882FJ Flash data. so which is easier for us we don’t have to do a whole bunch of the programming, reading, and writing stuff to the module

press ok

We need to desolder everything put it back together

Put the module back together and put it back on the car close everything up

then we’re gonna continue through the obd

We’re back at the car, get the obd plugged in IM608

Select all semi-smart keys lost

press the start button

Program 2008 Volvo XC70 All Keys Lost with Autel IM608 9

once okay whatever you guys don’t have the key right here and okay from the dealer okay i

I’m programmed so this is what it says right now same security data are required for performing this function

they can be obtained via data loading or obd reading as much as i know guys to do obd reading on this thing it it takes a very long time as much as i remember at least for the last time so that’s why we had to remove it and read it on the bench much quicker

It says on you select yes to upload data

Select yes to use data loading

Program 2008 Volvo XC70 All Keys Lost with Autel IM608 10

Then select No, not to load the data flash. You know the flash data which no we don’t need to load it.

if you want to continue perform function there must be one key yes the original key

if clear successfully need to be learned again we don’t have to do that because we have only one key all the keys are lost

verify the type of key first

Program 2008 Volvo XC70 All Keys Lost with Autel IM608 11

would you like to continue yes

Turn the ignition off and

remove the key

all right

okay just ignition just turned on

which i just did

Program 2008 Volvo XC70 All Keys Lost with Autel IM608 12

Program 2008 Volvo XC70 All Keys Lost with Autel IM608 13

Autel IM608 successfully programmed a new key to this vehicle.
