Autel IM508 Gbox Read BMW EDC16C06 ISN Code

 How to read BMW 1 series E87 EDC17C06 engine ECU 32-bit long ISN code with Autel IM508 XP400 Pro and Gbox3?



Mode: Boot mode.

Vehicle: BMW 1 Series – E87 Drive side – RHD Gearbox – Manual Engine – 2.0 Year – 2010

OEM no: DDE 8 510 592

Bosch no: 0 281 016 925

Tools to use:

using Bench power supply

Autel IM508 G-Box2/3

Boot Pins

Boot Pin holder



Procedure:

Remove and disassemble engine ECU.

Autel IM508 Gbox Read BMW EDC16C06 ISN Code 1

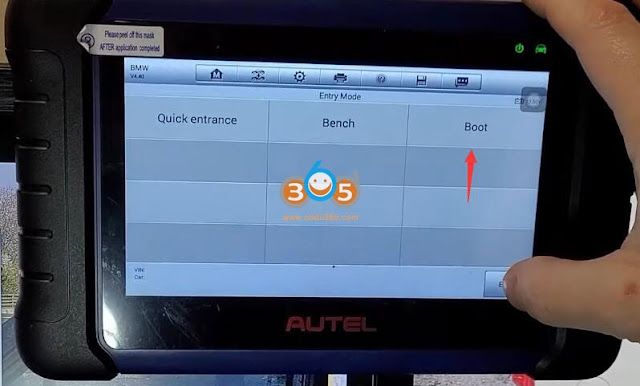

In IM508 go to System Selection-Engine- Direct- Boot- E chassis- Bosch-TC1766 EDC17C06.

Autel IM508 Gbox Read BMW EDC16C06 ISN Code 2

Autel IM508 Gbox Read BMW EDC16C06 ISN Code 3

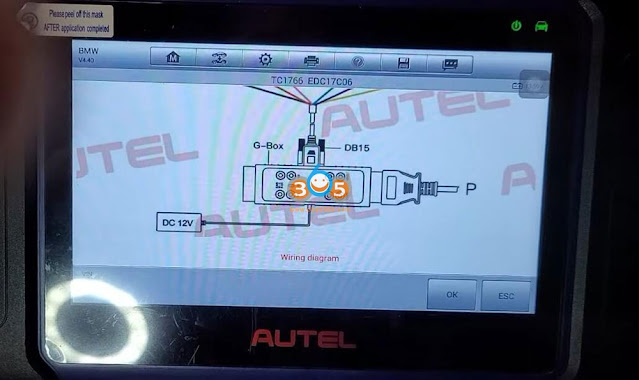

Check wiring diagram and instructions.

Autel IM508 Gbox Read BMW EDC16C06 ISN Code 4

Autel IM508 Gbox Read BMW EDC16C06 ISN Code 5

Connect ECU with gbox and xp400 pro following the diagram in boot.

Autel IM508 Gbox Read BMW EDC16C06 ISN Code 6

Autel IM508 Gbox Read BMW EDC16C06 ISN Code 7

Autel IM508 Gbox Read BMW EDC16C06 ISN Code 8

Autel IM508 Gbox Read BMW EDC16C06 ISN Code 9

Read ISN.

Autel IM508 Gbox Read BMW EDC16C06 ISN Code 10

Autel IM508 Gbox Read BMW EDC16C06 ISN Code 11

Read ISN successfully.

Autel IM508 Gbox Read BMW EDC16C06 ISN Code 12
