Autel IM608 Read Motorola HC05E6 Remote Password

Purpose:

Mercedes Motorola Processor Key HC05E6-REMOTE (0F82B) Password Retrieval

You need:

Autel MaxiIM IM608

XP400 programmer

Motorola Processor Key

Steps:

Go to Autel Im608 programmer

Accept the agreement

Chip (eeprom, mcu, ecu) – Chip read & write

IMMO – BENZ – HC05E6-REMOTE (0F82B)

Read and save data

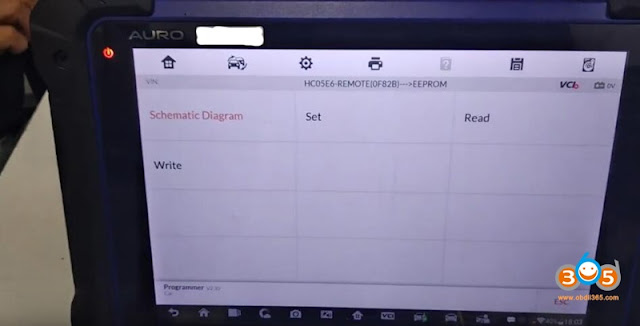

Go to EEPROM for Schematic Diagram

Then read HC05E6 remote

Autel IM608 managed to read chip

Save chip data

Exit

Go to EdHex

Select file that saved just now and check password

The security password of the remote key should be: 7c cf 6a ce 9a ab d9 82

Job’s done!

www.obdii365.com

http://blog.obdii365.com/2020/01/13/mercedes-motorola-hc05e6-remote-password-retrieval-with-autel-im608/

How to bypass Chrysler SGM with Autel Scanner and FCA 12+8 Cable?

2018 and newer Chrysler, Dodge, Ram, Jeep, and Fiat now have a secure gateway module or SGM.  This SGM will not allow your scan tool to do bidirectional controls on the vehicle.

Autel has provided a cable to bypass the SGM.

Image:

source: http://www.obdii365.com/wholesale/fca-128-universal-adapter-cable-adapter-for-autel.html

Function:
1.OBD instrument mileage calibration, OBD anti-theft matching, etc.
2.Used with other diagnostic devices to read and clear fault code.

The Cable Adapter can be used with Autel scan tools, such as MS906, MS906BT, MS906TS, MS908, MS908S, MS908S PRO, Maxisys Elite, IM608 etc.

Vehicles: (with Secure Gateway Module)

2013+ RAM Promaster

2015+ Fiat 500x

2015+ RAM Promaster City

2016+ Jeep Renegade

2017+ Alfa Romeo Giulia

2017+ Jeep Compass

2017+ Jeep Cherokee

2018+ Jeep Wrangler

2018+ Ram Trucks

2018+ Dodge Durango

2018+ Jeep Wrangler (JL Body only, not JK)

2018+ Dodge Journey

2018+ Jeep Grand Cherokee

2018+ Chrysler Pacifica

2018+ Chrysler 300

2018+ Dodge Charger

2018+ Dodge Challenger

2019+ Most Fiat/Chrysler/Jeep/Ram vehicles

2020+ ALL FCA vehicles

Connection:

1.Locate and unplug the 12pin and 8PIN connectors of the SGW module.
2.Then connect the FCA 12+8 directly to the 12pin and 8pin (two connectors connected to the SGW) connector on the car.
3.At this point, normal communication with the car can be achieved.

Test:

Autel’s SGM Solution for Chrysler

Connect the Chrysler 12+8 directly to the 12pin and 8pin on SGW to read faults

source: http://www.obdii365.com/wholesale/fca-128-universal-adapter-cable-adapter-for-autel.html
