How to Send Autel IM608 Data Log?

 How to send Autel IM608 datalog after disconnecting from the vehicle and performing function failure.

1. Data Manager
2. Data Logging
3. History performed functions
4. Click the right arrow to the corresponding function page to send the log
5. describe what's failure
6. send the log

Autel Im508 xp400 pro same as Im608 pro?

 This article answer this common question: Does Autel Im508 with xp400 pro have the same functions as Autel Im608 with xp400 pro? Same features and diagnostics and immo ? And just size different?



Some people might think:

Autel IM508 + XP400 cost half of the price on IM608 are you think that can do the same?



In fact:

The immo functions are pretty much the same for key programming.



The difference is the diagnostic functions, im608 has far more diagnostic functions included, depends what you want the machine for, the extra cost and subscription cost is for the diagnostic functions. Diagnostic side on the im608 is really good and can almost be compared with the mk908p only the online programming for Mercedes and bmw is not on im608.
But the rest off the coding and programming is still possible on the im608.



And the annual subscription of Autel IM608 is double.



Look at the comparison table among Autel IM508, IM608, IM608 Pro



Look at the comparison table between Autel IM508 and IM608:



This page includes all Autel IM508 /IM608 key programming operation guide:

http://blog.obdii365.com/autel-im608-training/



And for Autel IM508 /IM608 (IMMO) coverage, refer to the official site:

https://www.autel.com/vehicle-coverage/coverage2



Finally, where to purchase reliable Autel MaxiIM IM508 /IM608?

Source of Autel MaxiIM IM508 Plus XP400 Pro:

https://www.obdii365.com/wholesale/autel-maxiim-im508-plus-xp400-pro.html



Source of Autel MaxiIM IM608 Plus XP400 Pro (double price of IM508 with XP400 Pro):

https://www.obdii365.com/wholesale/autel-maxiim-im608-with-xp400-pro.html

Autel IM608 Renew Mercedes BE Key

 Autel IM608/IM508 can renew Mercedes BE aftermarket Key and WRITE the new Key File. Here is the BE key renew procedure with MaxiIM tools.

Insert BE key into IR hole of xp400 pro

select IMMO-> Mercedes-Benz->Expert Selection->Key->IR->Repair key

Read key information, key was programmed.

Select Renew BE key function and confirm to clear key

Clear the BE key successfully

Read key information again
Now the BE key was renewed and can be programmed to another Mercedes.

www.obdii365.com

Autel IM608 Program Subaru WRX 2018 Smart Key

 Autel MaxiIM IM608 new test report: successfully added a spare key to a 2018 Subaru WRX STI American model.

This is the original key, we need to add a new key to this system

in IM608, Select IMMO and auto scan VIN

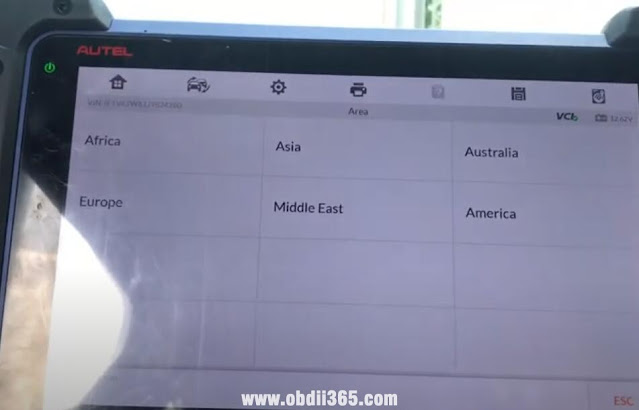

Select Subaru Aisa-> Manual selection->America-> Impreza WRX -> 2015-2019->Smart key->Keyless System (CAN)->Immobilizer remote control learning->Key Learning

*If select Impreza WRX STi, it only has 2005-2014 blade key option. So we choose Impreza WRX instead.

During the learning period, make sure all doors are in current positions. you must to close the doors

Use the registered key to close to the Start button in 60 sec

Successfully bring the keys to be learned to the Start button
Number of registered access keys: 2

Press OK, now you can see the 3 keys are registered

Turn off ignition with push button ignition switch.

Successfully use the keys have been learned to turn the ignition ON in 60 sec

The key must in the car and near to the Start button.

During the learning period, make sure all doors are in current position.

Wait until the learning process completed

Test the new key, it can start car, remote control works as well.

Done.

http://www.key-programmer.org/2021/06/18/autel-im608-program-subaru-wrx-sti-2018-smart-key/

Clear Toyota Avanza 2017 SRS Crash Data by Autel XP400

This is a Toyota Avanza 2017 airbag module with Renesas R5F2154 MCU

Successfully read data by autel im608 xp400 programmer.

Select chip then autel will give you a wiring diagram.

SRS module clearing crash data success.

Autel IM608 Asks Pin to Program 2019 Toyota Rav4 Key

 Problem:

I am trying to add a key on a 2019 Toyota Rav4 but Autel IM608 asks for a 12-digit pin I would appreciate if someone could help me find it or sell it to me.

Solution:

Need NASTF subscription for access code.

check here : how to get access code?

If have Lonsdor K518ISE, just purchase Toyota AKL license and dedicated smart key, RAV4 2019-2021 all keys lost can be done via OBD.



Check the detail guide here:

https://www.obdii365.com/service/program-2019-2021-toyota-all-keys-lost-with-lonsdor-k518ise.html

Program Jeep Compass 2012 Key with Autel IM508

 Question: I have a car model 2012 Jeep Compass Sport VIN: 1C4NJCBAXCD6xxxxx, Pontiac G6 2008 (USA) Skim Key Code ( Immo Code) that is showing as an issue.  This vehicle is made in the USA.  Can you tell me if the IM608 Autel Tool will work on my vehicle?  In terms of the IMMO for lost keys, key replacement, programming of the module / remotes, read the pin for the remotes?  I think one of the keys is bad, or the module is bad.  Also, if I replace the IMMO Module can the Autel IM508 set the vin number to that new module in terms of programming the module and what are the functions of the IMMO- specifically?

I am just looking for a tool that has at least the scanner, and (25+) Service functions, MOSTLY (IMMO) inclusive.



Autel Chief engineer replied:

Please visit the official site to select product model IM508 (IMMO), Jeep (NA), compass (NA is the abbreviation for North America):

https://www.autel.com/vehicle-coverage/coverage2



You will see Compass year, system, tested functions ( add key, all keys lost, read password, remote learning) and the last list is IMMO part replacement.



What’s more, here is one test report for your reference:

Jeep Compass smart key programming with IM508



Plug Autel MaxiIM IM508 into the OBD2 port the Jeep Compass, and then turn on ignition on.

(Image is IM100, it is as the previous version of IM508)



Select Jeep -> Smart Mode



It says if it is old pre 2006 model, please give priority selection to “Manual Selection” or “System Selection”, click on “Yes”.



Establishing vehicle communication.



Select “Smart key”.



It says “Turn the ignition off and turn on the emergency flashers”.



Establishing vehicle communication.



Read out password successfully.

Click “OK”



Select “Keyless system (CAN)”.



Establishing vehicle communication.



Select “Key Learning”.



Select “Add key”.



Please place the smart key on the central lock (near the shift bar), make sure the ignition is OFF.

Make sure all wireless devices (laptops, cell phones, other fob keys) are not close to the smart key being programmed.

Make sure the doors are closed.

The procedure will add a new smart key WITHOUT erasing the programmed.



Notice: the new key must be the OEM smart key (with 4A chip) of the current model.



Here we will use Xhorse smart key.

Key number of key: 3

Click on “OK” to continue.



Finally, successfully added.

Enjoy!

http://blog.obdii365.com/2021/06/08/autel-im508-jeep-compass-2012-key-programming-guide/
