Can Autel IM608 Clone PSA BSI Module?

 Can we clone PSA Peugeot/Citroen BSI (Built-in Systems Interface) with Autel MaxiIM IM608?

There is a clone option in the tool for BSI. Make sure the battery good and remove the wiper fuse.

Select car, manually select module - Clone BSI.

IM608 Citrone Peugeot software version V3.10 adds BSI clone function for the following 8 types:
CONTINENTAL_BSI_Q0X,  JC_BSI04EV_K0X, JC_BSI04EV2_KEX, JC_BSI2004_H0X, VALEO_BSI_N0X,
VALEO_BSI2004_P0X, VALEO_BSIEV_X0X, and SIEMENS_BSI_S0X

On the PSA vehicles, the Autel IM608 has a very good range of day to day live data and functionality such as injector coding, full dpf activation and resetting etc. Nothing really more than any tool. 2 things it does offer that are different

1- Key coding. We have done dozens and it's brilliant, it literally just clicks and follow the instructions. Will do from around 2001 until present day.

2- BSI coding/replacement. As said above, make sure have good battery supply and network connection. Otherwise programming fails and car is dead.

We had a customer who had one bsi Jc controller that was dead after having programmed it with im608. Programing went to 98% then the car was dead after that.

We would recommend you swap flash and eeprom is safer than clone it over obd.

If you have eeprom in bsi it is easy just clone it, but if you have NEC mcu, you will be more difficult you must search for pinout of NEC reference on Autel and swap it.



Related reading: check BSI wiring diagram

AUtel IM608 XP400 BMW FRM3 Chip is Locked Solution

 Problem:

Hi to all. How I can sort BMW FRM3 module with autel im608 xp400? It is a BMW E90. Thanks for any help.

Error: Chip is locked and cannot be read. For write, erase unlock first.

Solution:

IM408 will read Dflash under Programmer option, you should first write partition.

Here is the instruction: http://blog.obdii365.com/2021/11/25/can-autel-im608-repair-bmw-frm3-module/
you can also read dflash with vvdi prog or xprog, orange 5 or UPA.
When you read dflash you need to upload here to extract eeprom. https://tlvps.tomvanleeuwen.nl/frm/ then write back eeprom to frm partition.

Autel IM608 Cannot Update Keeps on Renew Screen Solution

 I couldn't update my Autel IM608.  I hit the renew button and it jumped to the renew screen. Update function been like this for an hour now? Server problems? Have fine Wi-Fi connections! Any suggestions?

Solution:

This started happening after the last system update.

Update: working now, after a restart and Wi-Fi on/off

After the tablet reset, it now works.

For those who have the same problem. Force close the device and start again. All good.



www.obdii365.com

AUtel IM508 Program Toyota CHR 2020 All Keys Lost Success

As titled, looking for a programmer to do Toyota CHR 2020 Proximity All Keys Lost, what till do, Will XHORSE with Toyota 8A AKL Adapter can do it ? can it be done via OBD?



8A AKL harness is for blade key, not proximity.

As far as we know already :

- AUtel IM608/IM508

- LONSDOR can make it

- TANGO



Autel IM608/IM508

If USA model, it is done via OBD,

if it is an EU model, bench + OBD job.



USA model:

Toyota new IMMO software V3.80 adds Add Key and Erase Key functions for models including C-HR EV, Harrier HV, Highlander HV/Kluger HV, Izoa EV, RAV4 PHV, Sienna HV, Wildlander, Wildlander HV, Wildlander PHV, Yaris Cross and Yaris Cross HV.

All keys lost is not yet available on US model, only add key.

2018+ AKL you need to obtain code and program by Autel.

EU model:

Test report

Toyota CHR 2020 year proximity all keys lost done by autel im508 xp400 + gbox +apb112

adapter APB122 required to learn keys in all keys lost situation.

immo box module is behind glovebox.  Inside this smartbox you will not find EEPROM.  Inside is Secured / Crypted MCU.
EU model must be done on bench, cannot do it through OBD with Autel.

First collect immo data on bench, then put immo module back into car and use back up immo to make virtual key, then add your key. Done



2) Tango

Tango software V1.122 adds OBD solution for Toyota CHR 2017+ Smart Box ECU
These vehicles utilize Toyota smart keys (page1 A9), emulated on SLK-04/04E.

Actual smart keys can then be added via standard diagnostic procedure (Techstream & others).*

Requires Tango Toyota CHR 2018+ Software Activation.
Fitments:
TOYOTA C-HR 2018+

Feedback: Tango and techstream yesterday test work on this.





3) Lonsdor K518ISE

Requires ADP adapter to work with.

ADP adapter supports 90% Toyota Lexus proximity smart key programming without AKL license and rolling PIN.

Demo: How to use Lonsdor ADP Adapter to Program Toyota/Lexus 8A/4A Proximity Till 2021?

4). Xtool x100 pad3

xtool will add spare proximity key on C-HR 2018+ via obd, all keys lost requires obtain code as well.

Menu path: Select Immobilizer->Toyota->Smart Key System->Prox 3 (proximity)->Add a smart key

Demo example:

Xtool X100 PAD3 Adds Toyota CHR 2019 Spare Key Success



Autel IM608 Adds 2016-2020 Fiat Smart or Blade Key

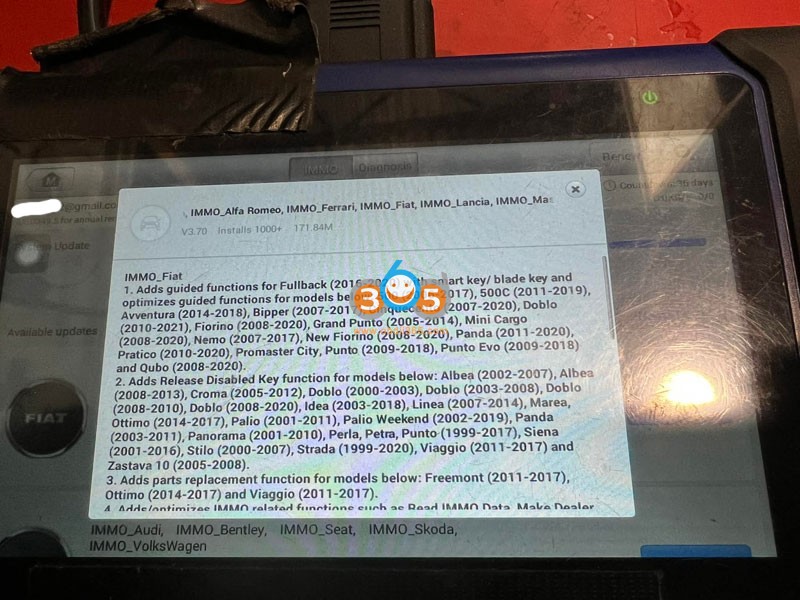

Autel IM508/IM608 Fiat Lancia IMMO software update to V3.70 on Jan. 11th, 2022.

1. Adds guided functions for Fullback 2016-2020 with smart key/blade key and optimizes guided functions for models below:

500 (2006-2017), 500C (2011-2019), Avventura (2014-2018), Bipper (2007-2017),

Cinquecento (2007-2020), Doblo

(2010-2021), Fiorino (2008-2020), Grand Punto (2005-2014), Mini Cargo

(2008-2020), Nemo (2007-2017), New Fiorino (2008-2020), Panda (2011 -2020),

Pratico (2010-2020), Promaster City, Punto (2009-2018), Punto Evo (2009-2018)

and Qubo (2008-2020).

2. Adds Release Disabled Key function for models below: Albea (2002-2007), Albea

(2008-2013), Croma (2005-2012), Doblo (2000-2003), Doblo (2003-2008), Doblo

(2008-2010), Doblo (2008-2020), Idea (2003-2018), Lines (2007-2014), Marea,

Ottimo (2014-2017), Palio (2001-2011), Palio Weekend (2002-2019), Panda

(2003-2011), Panorama (2001-2010), Perla, Petra, Punto (1999-2017), Siena

(2001-2016), Stilo (2000-2007), Strada (1999-2020), Viaggio (2011-2017) and

Zastava 10 (2005-2008).

3. Adds parts replacement function for models below: Freemont (2011-2017),

Ottimo (2014-2017) and Viaggio (2011-2017).

4. Adds IMMO related functions

Autel IM608 Adds VAG 7GV and 9GV Immo Data Reading

 Autel IM508/IM608 VW Skoda Audi Seat IMMO software update to V5.30 on Jan. 11th, 2022.

IMMO Skoda
1. Adds Redd IMMO Data function for 7GV ECM and obtain IMMO Data by Reading ECU Data via  Dump function for 9GV ECM, both for Magneti Marelli.
2. Optimizes All Keys Lost (via Dump) function for IMMO 4 CAN instrument cluster in Expert mode.
3. Adds texts in some languages including Russian, Spanish, French, Japanese, Portuguese, German and Italian.

IMMO Volkswagen
1. Adds Read IMMO Data function for 2 software versions for IMMO 4 instrument cluster (part number: 5ND920873B) for Tiguan.
2. Adds Read IMMO Data function for 7GV ECM and Obtain IMMO Data by Reading ECU Data via Dump function for 9GV ECM both for Magneti Marelli.
3. Optimizes All Keys Lost (via Dump) function for IMMO 4 CAN instrument cluster.
4. Adds texts in some languages including Russian, Spanish, French, Japanese, Portuguese, German and Italian.

IMMO Audi
1. Adds Read IMMO Data encrypted via Programmer and automatically Save IMMO Data function for IMMO5 BCM2
2. Fixes IMMO Data reading failure in Smart mode for Q3 2012-2019
3. Optimizes All Keys Lost (via Dump) function for IMMO 4 CAN instrument cluster
4. Adds texts in some languages including Russian, Spanish, French, Japanese, Portuguese, German and Italian.

IMMO Bentley
Adds texts in some languages including Russian, Spanish, French, Japanese, Portuguese, German and Italian.

IMMO Seat
1. Adds Redd IMMO Data function for 7GV ECM and obtain IMMO Data by Reading ECU Data via  Dump function for 9GV ECM, both for Magneti Marelli.
2. Optimizes All Keys Lost (via Dump) function for IMMO 4 CAN instrument cluster in Expert mode.
3. Adds texts in some languages including Russian, Spanish, French, Japanese, Portuguese, German and Italian.

Autel IM608 Adds Ford Ranger Edge 2015-2020 Parameter Reset

Autel IM508/IM608/IM608 Pro Adds IMMO Ford and Mazda software released to V3.90 on Jan. 11th, 2022.

Immo Mazda
Optimizes vehicle IMMO information

IMMO Ford
1. Adds Parameter Reset function for models below:
Ford Edge 2015-2020 for USA/Aisa, Ford Ranger 2015-2021 for USA, Lincoln MKX 2016-, Lincoln MKC 2015- and Lincoln Continental 2017-
2. Supports IMMO function for Lincoln Corsair up to 2022
3. Optimizes automatic selection via VIN
4. Optimizes vehicle IMMO information

IMMO_Ford EU
1. Optimizes automatic selection via VIN
2. Optimizes vehicle IMMO information

Autel IM608 Adds Jeep Renegade 2021 PIN Reading

Autel IM508/IM608/IM608 Pro Immo Chrysler Dodge and Jeep software update to V3.90 on Jan, 11th, 2022.

IMMO Chrysler
Optimizes PCM replacement function for Pacifica ECM

IMMO Jeep
1. Adds RFH Replacement function for new IMMO parts for Renegade/Compass.
2. Adds IMMO related functions including Read PIN for Renegade 2021
3. Optimizes PCM replacement function for Cherokee


IMMO Dodge
1. Optimizes Key Learning function for Caravan R/T 2019
2. Optimizes All Keys Lost function for RAM 2006


Autel IM508 IM608 Adds BMW B48 B58 ISN Reading

 Autel IM508/IM608/IM608 Pro adds ISN function for B48/B58 ECM on Jan, 11th, 2022.

IMMO_BMW
1. Adds 46 versions of Read ISN function for B48/B58 ECM
2. Adds 1 version for Back Up Coding function for FEM/BDC
3.Fixes bugs feedback by after-sales service personnel and found in software test.
4. Optimizes server performance

IMMO_MINI
1. Adds 46 versions of Read ISN function for B48/B58 ECM
2. Adds 1 version for Back Up Coding function for FEM/BDC
3.Fixes bugs feedback by after-sales service personnel and found in software test.
4. Optimizes server performance

IMMO_Rolls-Royce
1. Adds 46 versions of Read ISN function for B48/B58 ECM
2. Adds 1 version for Back Up Coding function for FEM/BDC
3.Fixes bugs feedback by after-sales service personnel and found in software test.
4. Optimizes server performance

Autel IM608 Adds Toyota Agya, Rush and Avanza AKL

 Autel IM508/IM608 Toyota Lexus Scion Immobilizer Program software released to V3.80.

IMMO_Lexus
Optimizes software structure.

IMMO_Toyota
1. Adds password-free functions including Add Key, Erase Key and All Keys Lost for Agya, Rush and Avanza.
2. Adds Add Key and Erase Key functions for models including C-HR EV, Harrier HV, Highlander HV/Kluger HV, Izoa EV, RAV4 PHV, Sienna HV, Wildlander, Wildlander HV, Wildlander PHV, Yaris Cross and Yaris Cross HV.
3 Adds All Keys Lost (Using G-Box for IMMO Data Backup) function for Camry (89990-06290) with smart key.

IMMO_Scion
Optimizes software structure.

Autel IM508 IM608 Updated Make Dealer Key with KD Key Function

 Autel IM508/IM608 IMMO_ Immo Program Version number V3.80

Release date 1 /6/2022

1. Key read & write: Optimizes information identification for PCF7935 key chip, adds Make Dealer Key with KD Key function, and optimizes Make Dealer Key with 4A Key function.
2. Chip read & write: Adds read & write function for ix25 immobilizer for Hyundai, adds read & write function for 9GV ECM for VW,

adds read & write function for IMMO modules for Soueast DX7, and adds read & write function for MPC5J53xx series chips.

Would Autel IM608 IM508 Provide CS and PIN for VW IMMO4 + MQB?

 Question: Would Autel IM608 / IM508 provide CS and PIN for VW 4th IMMO, IMMO 4th +MQB?



Autel replied:

Dear friend, need to find the pin & cs from other channels. Autel advanced VW immo 4 and immo4+mqb calculating services is still affected, but in expert selection menu, which still continues to work.
such as:
1. Immo IV instrument CAN (15type )
2. Instrument K-line (17type)
3. MQB (VDO NEC 35XX, add key)
4. Comfort module Passat B6/CC
5. Kessy -VW (Phaeton/Touareg)
6. Immo V Touareg, Immo V Audi.



How to go to the "Expert Selection" menu to get CS and PIN for VW 4th IMMO, IMMO 4th +MQB? check this article guide:

http://blog.obdii365.com/2021/08/12/autel-im508-im608-vw-5-10-advanced-mode-key-learning/



Just scroll down to "Manually input pincode and CS code to do the key learning", and you will get the answer below.



Hope it helps!



Autel IM608 / IM508 tech support: www.obdii365.com

Autel IM608 Fiat Punto 2009 ID46 key generation failed?

 Car model / Year / chip: Fiat Punto – 2009 with ID46 chip



Purpose: Program a key with Autel MaxiIM IM608



Problem:

I can read the eeprom data and save it.
When i connect the programmer and try to make a dealer key i get the message: The key generation failed, please check if the chip type is correct.



What I tried:

[Fiat --> Manual selection --> Europe --> Tipo --> 2018-2020 Blade key --> Control unit --> Read Immobilizer Password(CAN)]



Then:

[Fiat --> Manual selection --> Europe --> Tipo --> 2018-2020 Blade key --> Control unit --> Immobilizer(7010563_Megamos AES)]



Autel engineer replied:

The key may be locked, please use a blank 46 key to make dealer key.



Check related article:

Autel IM608 Read ID46 and program key for Hyundai Starex 2007



www.obdii365.com

Autel IM508 IM608 No Space Memory Solution

 Is the internal storage for the Autel IM508 not capable of storing everything? It says insufficient space of internal memory.

I use this device for only key programming and some diag… no other files on device. Not even screen shots.

Is there something I can do to release space?

Some cache I might need to clear to prevent need for SD card?

Solution:

Just buy a 32 GB SD card. They are inexpensive and double the storage space of the IM508/IM608.

You can back up the IM508 to a USB card like other Autel tablets.

If you don't want to back up, just delete everything and reinstall just in your market. If you’re in the USA don’t download anything outside the USA.

Autel IM508 Cannot Add Key 2021 Cadillac Escalade?

 Problem:

Hooked up autel im508 on a 2021 Cadillac Escalade. Need to add a new key but im508 cannot communicate with this model.

Solution:

Autel vehicle coverage stops at 2020 for this model Cadillac. It can do some GM’s but it would have required a CANFD adapter no matter what, but no 2021 full size suv and trucks yet. Maybe they will update to 2021 later.

What tool will do?

1. OBDSTAR X300 DP Plus/Key Master DP plus + OBDSTAR CAN FD adapter

This kit can do Cadillac Escalade 2021, also does 2021 dodges.

Check the available coverage on the webpage.

Example:

Program 2021 GMC YUKON All Smart Keys Lost by OBDSTAR X300 DP Plus

Program 2021 Buick Envision Proximity with OBDSTAR X300 DP Plus





2.  GM MDI2 with SPS2 online subscription.

J2534 and 50$ will get that programmed in 12min.

http://www.key-programmer.org/2022/01/07/autel-im508-failed-to-add-key-2021-cadillac-escalade/
