Autel IM508 and XP400 Adds 2016 Golf 7 MQB Key

Test report:

Golf VII MQB 2016 add key successfully by Autel IM508+xp400

Blade half smart key.  Key with blade. Ignition turned by key blade.

Part number of original key : 5G6959752AB

Read immo success

Online calculation seems back. Calculating time about 3min

Make dealer key success

Adapt new key failed - because I had no battery inside key.

I put battery inside and learning ok.

Whole procedure about 12min.

Used Chinese aftermarket key.   xhorse key doesn't work. Cannot do dealer key. It was aftermarket key.  This one was bought from aliexpress, but it is a lot of sellers on web.

IM508+ xp200 can do this too. same AKL.

Autel IM608 Adds 2020 Ford Mustang Smart Key

 First attempt:



Needed to add a key to a 2020 Ford Mustang today that I was not successful with Autel IM608 yet. Followed all the prompts and was not able to gain access. I believe my mistake was I said yes to active alarm and I answered yes. I believe it was asking if alarm was active and it was not. Also I was never prompted to turn ignition on.

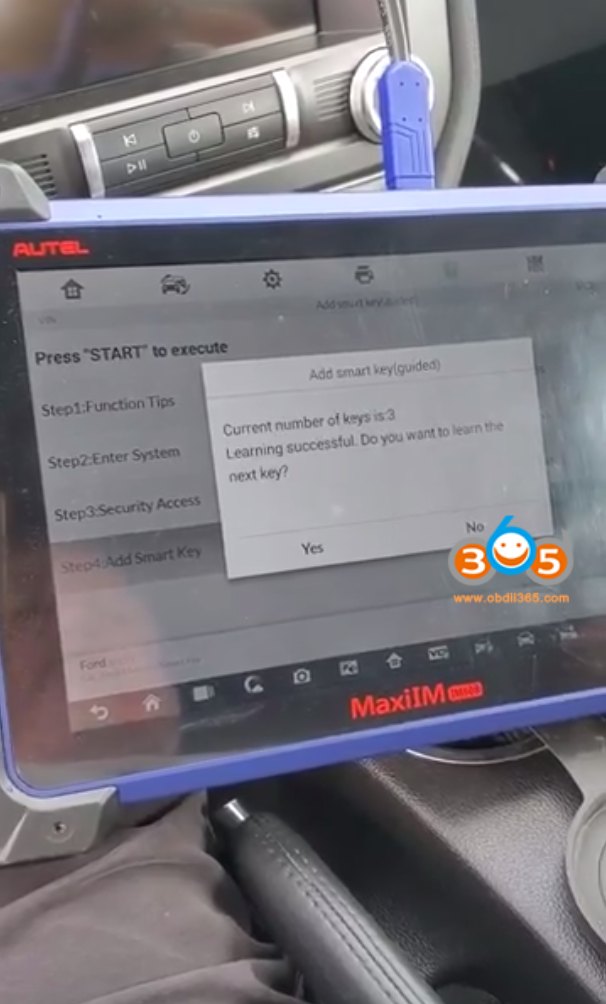

Update: im608 works. Successfully added a smart key. Have to do manual selection.

 Alarm was active. If you chose Yes the system might have different communication. So select No then move.

Don’t need key on to program a Ford.

http://www.key-programmer.org/2021/02/21/autel-im608-2020-ford-mustang-smart-key-programming/

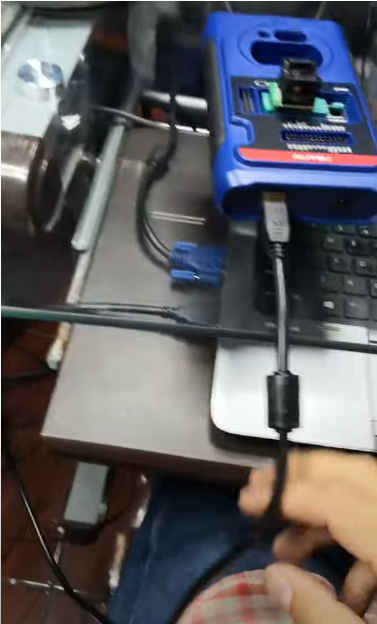

Autel XP400 Read EEPROM 93C56 direct to PC

 Autel XP400 or XP400 pro have PC software which allows directly operation on PC/laptop without IM608.

Here we read EEPROM 93C56 direct to PC

Check: http://blog.obdii365.com/2020/07/23/where-to-download-autel-xp400-software/

Autel IM608 Program Fiat 500 Dealer Key

 Question:

Fiat 500 add two new keys but how do I make them dealer keys so they will program by the Autel MaxiIM IM608 ? I have one working key and im608 read pin correctly.

Suggestion:

Need to read immo data first there should be make dealer key option once you’ve ready immo data. It’s not just pin must read immo data. You have to read immo data make a dealer key learn the keys 100% .

 If you have a working key you select 2 keys to program or in this case you would select 3 keys to program as you wants to add an original and 2 new remotes.

Program working key first followed by the next 2

Unavailable keys are only erased permanently from the system and cannot be used again once the procedure has been completed.

Go into immo system first and you will see -

Read password

Generate dealer key

Program key

Follow in that order

Program original in first followed by 2 new keys.









User feedback:

Turns out the Autel im608 read it as an arbarth but in arbarth there no precode functions to read the actual bcm and then make the dealer keys. So I handy I go in manually into fiat - fiat 500 instead of by vin into arbarth. Once in there the read immo data function was there so I did that abs then made the dealers keys in the xp400 then moved on to code them in the ignition.

http://www.key-programmer.org/2021/02/19/tips-to-program-fiat-500-dealer-key-with-autel-im608/



Will Autel IM608 Program used Mercedes 7G 722.9 Transmission?

Question:

Any ideas if Autel im608 can program Mercedes transmission 7G 722.9 a used transmission has been installed. The operation required two steps.
1-Reset the new (used) control module (make ECU virgin).
2-transfer the data from the old(original ECU) to the donor control unit.
My Question if Autel IM 608 can do this I would like to by one by not sure if it do it. Thanks for the help

Expert Advice & Suggestion:

IM608 will do the reset but will not transfer the VIN and SCN on a new TCM.
The Elite, MK908 and ultra have all the bmw/mercedes programming, im608 doesn't.
The mk908 will do it for sure, it has access to autels bmw/mercedes servers.


You’ll just transfer over the data and the coding. If not, you’ll have to renew the new one and then use the Elite to download the SCN coding.

Autel IM608 Adds Volvo XC70 2010 Remote Key

 Add key to a VOLVO  XC70 2010 by Autel IM608 by OBD

remote is working.

How to Add 2016 Jaguar F-Pace Smart Key with Autel IM608

 I have added a smart key (5 buttons) to a Jaguar F-Pace year 2016 using Autel MaxiIM IM608 today. It is kvm out job. A safe and emotionless work.

Mask 1M12S MC9S12XEQ384.



The Auteltech lists only F-Pace from 2017 to 2018. I did a 2016 model no issue.

Remove KVM module and follow operation guide in IM608

Prepare an APA106 wire harness.
Check the circuit board of the current immobilizer components and identify the corresponding circuit board from the picture below
Remove T1 and T2 components
Connect, read or write data as illustrated in the picture

Then follow autel im608 prompts to add a dealer key

http://www.key-programmer.org/2021/02/05/autel-im608-adds-2016-jaguar-f-pace-smart-key/

Autel IM508 Program 2014 Toyota Avalon AKL via OBD

 Test report:

20114 Toyota Avalon all keys lost programming done by Autel IM508 and APB112 emulator in 15 minutes.



Customer provide Smart key



Procedure:

1. Back up Immobilizer

2. Make simulator key

3. Add key

Collect money easy.
