Autel IM508 IM608: Obtain VW PIN and CS Code?

 Tutorial on how to obtain VW PIN code and CS code when programming key with any of IM600/IM608(Pro), IM100/IM508, MaxiSys IM, OTOFIX IM1. [Related vehicle models ]: VW with IMMO IV, MQB, IMMO IV & MQB (for example: Volkswagen Amarok 2011) , [VW Version]: v5.10 and higher.



1. Users send request to ask PIN code and CS code.

Go to IMMO>>VW>>Advanced Mode



1.1 MQB

Add key and all key lost two menus as follows:

Advanced Mode>MQB(Beta)>Key learning

Advanced Mode>MQB(Beta)>All keys lost



1.2 IMMO 4

Add key and all key lost two menus as follows:

Advanced Mode>IMMO 4 Instrument CAN>Key learning

Advanced Mode>IMMO 4 Instrument CAN>All keys lost

1.3 IMMO 4+MQB

Add key and all key lost two menus as follows:

Advanced Mode>IMMO 4 + MQB Key>Key learning

Advanced Mode>IMMO 4 +MQB Key>All keys lost

2. User contacts Autel dealer or Autel tech support

Contact Autel dealer or Autel tech support to obtain codes when screen shows like below. User please tell the VIN of his vehicle.

[Sever computation failed. Please contact the dealer!

Error code:1001]



3. Autel tech support tell user the PIN code and CS code

Autel dealer or Autel tech support will tell user the PIN code and CS code via phone, email or instant messengers.



4. User inputs PIN code and CS code to finish the key learning.

4.1 MQB

Menu Path:

Expert Selection>Instrument MQB >VDO NEC 35XX>Make dealer key

Expert Selection>Instrument MQB >VDO NEC 35XX>Key learning

MQB : the CS input screen to make dealer key.

(Without original key then has to input the 32-byte key data. )

MQB key learning input CS code interface.



4.2 IMMO 4

Make dealer key

Expert Selection>IMMO IV Instrument CAN>VDO NEC 24C64 2014>Make dealer key

Key learning:

Expert Selection>IMMO IV Instrument CAN>VDO NEC 24C64 2014>Key learning

Make dealer key : the screen to input CS code

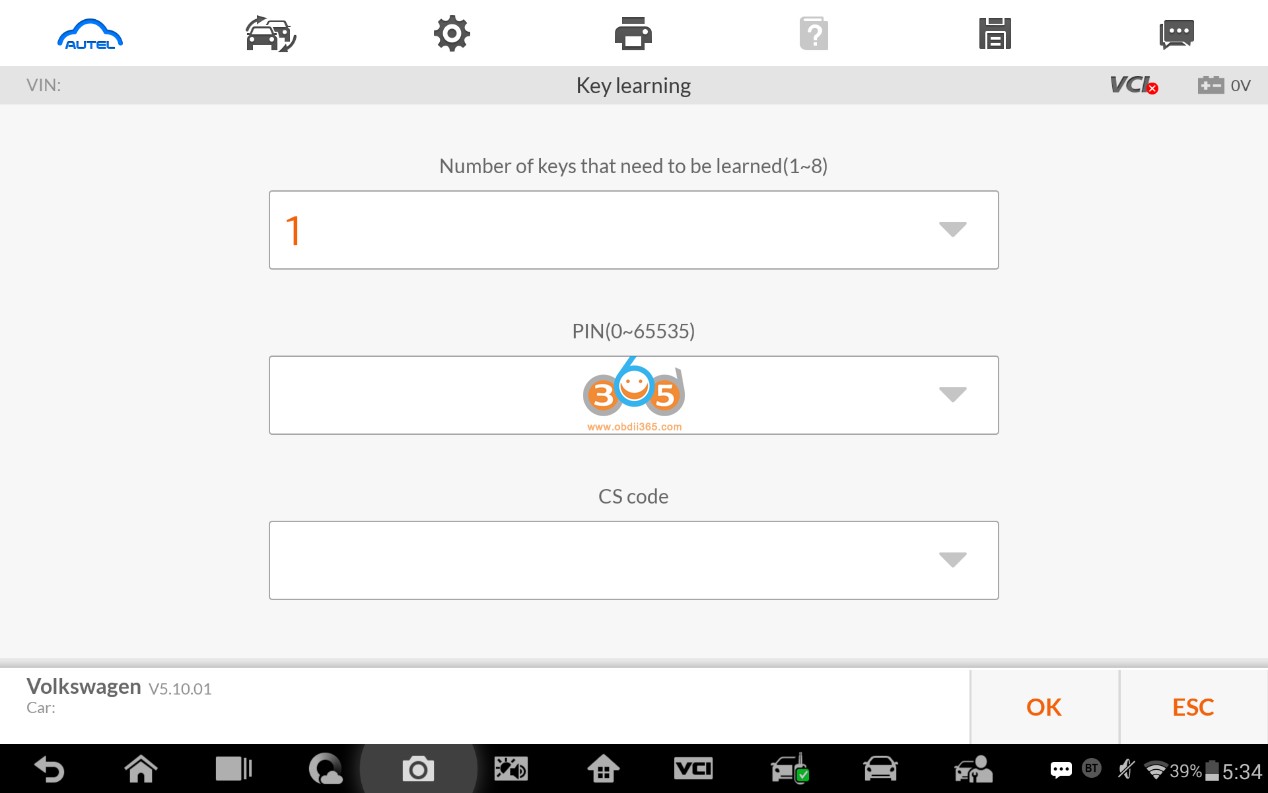

Key learning input PIN code and CS code interface.



4.3 IMMO 4+MQB

Make dealer key:

Expert Selection>IMMO 4+MQB key >Generate dealer key

Key learning:

Expert Selection> IMMO 4+MQB key >Key learning



IMMO IV+MQB make dealer key input cs code interface.



IMMO IV+MQB Key learning interface.



Hope it helps!



https://www.obdii365.com/

http://blog.obdii365.com/2021/10/24/autel-im508-im608-how-to-obtain-vw-pin-and-cs-code/

Add 2021 Lincoln Navigator Smart Key by Autel IM508

 Hey guys, we have 2021 Lincoln Navigator to add an all-new smart key using aftermarket smart keys and Autel MaxiIM IM508 key programmer, it should be simple we’ll find out together, let’s do it.



Firstly, connect the OBD cable to the port underneath the driver’s side dash, once connected, navigate to the tablet home screen and select “System settings“.

Connect to a strong dependable WiFi signal, a mobile hotspot is recommended.



Once you finish, return to the home screen and select the IM508 APP, select “Immo“, accept the disclaimer, then select your make [Ford] is the one for Lincoln, then choose “Manual selection”, choose your make and model Lincoln and navigator, then the desired year and smart key.

Confirm your selections.

Then choose Hot function, then “Add smart key (guided)”.

Select “Start to begin” and no WiFi is a must during the process, and while it’s going on the instrument panel may appear black or off it’s not an issue.

Choose whether or not your vehicle is an alarm state.

Then wait at most 10 minutes to bypass the security system.

As you get to the finish, prepare the new key you are going to be programming.

Once it’s complete, confirm the number of keys in the system and continue.

Next you need to locate your vehicle’s key coil, the one for this navigator is located in the armrest box, enter your new key into the coil and then continue.

Once you hit OK the vehicle should learn the key once it’s learned, you can keep programming new remotes or if your key fails, you can repeat the process, your remote at this point should have all button functions as well as proximity function. test them all to make sure everything’s working.



Right, so all functions on this remote work just fine, let’s go and check out this entry, everything’s working great, this key program super easy, no problems, easy to work with easy to program. Thanks to Autel IM508 and keyless factory remotes.

http://blog.obdii365.com/2021/10/19/add-2021-lincoln-navigator-smart-keys-using-autel-im508/

Can Autel IM508 Add 2017 Range Rover Sport Key via OBD?

 Problem:

Trying to add key to 2017 Range Rover sport with Autel IM508 XP400Pro. Is it possible via obd if I have one working key?

Solution:

You have to do this on bench.

 2010-2015 Dpla system – obd

2016-2018 Fk72 system – bench

2017-2019 Hpla system – bench

2019+  Jpla system – new kvm module, two new keys and a scan tool with doip j2534 interface

If you don’t want to do any removal since the customer has a working key, go for Lonsdor K518ISE and a dedicated JLR key. Lonsdor can do it via OBD.

Check programming manual: Program 2018 Range Rover Evoque All Keys Lost with Lonsdor K518ISE JLR Key

For bench work, IM508+XP400 or VVDI Prog +VVDI2 are very safe and reliable.

Autel IM608 Adds 2019+ Subaru H Blade Key All Keys Lost

 Autel MaxiIM IM608 (and IM508 with XP400Pro) key programmer update Subaru H blade key AKL for 2019+ on October 11th, 2021.

IMMO_Asian models
V4.00
10/11/2021
I . Adds Read password function for these Hyundai/Kla models as or 2020: Sonata, Elantra and Mistra [Blockbuster upgrade]
2. Updates Automatic Selection (via VIN) function, supporting models of 2022.
Nissan/Infiniti:
1. Adds password-free function All Keys Lost (by OBD) for Dongfeng Venucia D60 with smart key. [first released function]
2. Optimizes IMMO Status Scan function and key learning related hot functions.
Mitsubishi:
Updates Automatic Selection (via VIN) function, supporting models of 2022.
Renault:
1. Optimizes Key Learning function for models including Clio IV, Megane Ill, Kadjar and Koleos II.
2. Adds IMMO functions for these models as of 2018: Duster and Triber.
Subaru:
Adds All Keys Lost function for H type blade key for Forester (2019) and Crosstrek (2020).
Vehicle IMMO information:
Optimizes vehicle IMMO information for makes including Mitsubishi, Hyundai, Kia, Suzuki, Isuzu, Nissan and Honda.

Autel IM608 Update Toyota 4A Smart Key Add Key PEPS Reset

 Autel MaxiIM IM608 (and IM508 with XP400Pro) key programmer released a big update on October 11th, 2021.

IMMO_Lexus, IMMO_Scion, IMMO_Toyota
v3.70
IMMO_Toyota
Toyota:
10/11/2021
1. Adds Add Smart Key, Erase Smart Key and PEPS Reset functions for 4A smart key-
equipped models below: Corolla NV, Corolla Touring NV, Corolla Sports HV. Corolla Cross HV and Levin HV. (First released password-free functions]
2. Adds password-free IMMO functions for Avanza (2020-). (First released password-free functions]
3. Adds Add Smart Key. Erase Smart Key and PEPS Reset functions for RAV4 prime, Sienna HV and Venza HV. [First released password-based functions]
4 Adds password-based IMMO functions for Avalon HV, Highlander HV. Hiace (2020-) and Mirai (2021).
5. Optimizes All Keys Lost function for H type blade key,
Lexus:
1. Adds password-based IMMO functions for ES 250 smart key system.
2. Adds password-based IMMO functions for these models up to 2021 : LS 500, LS 500h, UX 200 and UX 250h,
Scion:
Optimizes software structure

Autel IM608 Program Nissan Sentra 2021 All Keys Lost

 Autel MaxiIM IM608 key programmer new test report:  programmed Nissan Sentra 2021 All Keys Lost successfully.

4A smart key

Need to buy 28-digit pin code

occupy Nissan 16+32 cable

everything was done by obd2
