Autel IM608 Program VW Golf VDO 24C64 All Keys Lost

 Most VW, Audi, Skoda, Seat cars after 2009 with VDO NEC clusters all keys lost can be done with Autel IM508/IM608/IM608 Pro via dump using APA102 clip adapter no soldering. It is like 10 minutes job. Really quick.

Read immo data, enter service mode, make dealer key, backup ABS, write original eeprom via obd, all of these steps were done while in the car without the need of any other tools.
Use this information at your own risk.



Procedure:

Remove instrument cluster

Auto detect cluster type: VDO NEC+24C64

Select All Keys Lost (via Dump)

Follow steps below to complete key programming:

Backup ABS code
Read EEPROM via Programmer
Write EEPROM via Programmer
Write EEPROM via OBD
Read IMMO Data
Make Dealer Key
KEY Learning
Recover ABS Code

Backup ABS code finished
Connect APA103 clip adapter with xp400 pro and cluster NEC24C64 chip
Read eeprom data via programmer
Write eeprom data via programmer

Power off the programmer, remove the 24C64 EEPROM and install it to the instrument panel
Connect the OBD connector, turn on ignition and press OK
Entering programming mode, it may take a long time
Write EEPROM data via OBD successfully

Reading immo data

Start making dealer key
Place a new blank key into XP400 key slot

Start key learning
Turn on the ignition switch
Autel IM508 asks if the car has smart key, here we press No
Input the number of key you need to learn
Key learning completed

Turn off ignition, wait for 5s and then turn on the ignition

Finally recover ABS coding. ABS coding has been recovered and working fine.
Reinstall cluster back to vehicle and test the new key.

Done.



FYI: If don’t want to remove dash, much easier way is to add remote to car using xhorse key. Then clone the key. ID48 clone it by xhorse key tool max. JOB DONE. No clocks remove. I.e 2010 Golf Plus.

http://www.key-programmer.org/2022/08/31/autel-im508-vw-gold-vdo-2009-all-keys-lost-in-service-mode/

Will Autel IM608 Program Xhorse XM38 Smart Key?

 Possible to program Smart Key keyless Toyota Auris 2 2014 as well as other Toyota with autel im508/im608 using xhorse XM38 smart remote?

Yes, find the correct board number and frequency and you are good to go.

Don’t take it by the look. Open original, check number on board and adjust it the same. Also frequency.

Autel IM608 Program 2017 Jaguar XF AKL via OBD

 2017 Jaguar XFAll Keys Lost successfully done with Autel IM608 Pro via OBD.

Generated the Key via “Key Clone AKL”.

5 Minute Job.

This feature was released with the last Mega Update.

You can ONLY use an Autel Universal Key. I mentioned “Autel Only” because the instructions say to use Autel Only. But my locksmith buddy said that it worked fine with the aftermarket JLR Fobs.

I lishi’d the door (HU101) and gave her a metal head key to hang on her keychain. Just incase the battery dies. If battery empty in this case you can’t put this key in emergency slot! You must tap the transponder on the side of the steering wheel in order to sync the fob with the vehicle after the Dealer Key is generated.

This model is an X260, coil is located on the left side of the steering wheel.

2012+ X250s have a coil on the underside of the steering wheel shroud.

2011 & Below X250s have the slot.

About 4 Months ago I was pulling out KVMs back to back. This feature is very very useful.

You can do this job with Londsor as well, their keys look like jlr keys.

Autel IM608 Program Toyota Corolla 2017-2018 All Key Lost

 Tutorial: How to program Toyota Corolla 2017-2018 proximity all keys lost using Autel IM608/IM608 Pro/IM508 XP400Pro via dump.



Step 1: Backup Immo Data

Connect VCI with the vehicle
Select Immo and find your vehicle
Select Toyota- Corolla- 2017 to 2018- smart key
Confirm vehicle information

Go to Control Unit-Keyless System (CAN)- Backup Immo Data

Take our the smart key module from the passenger side
Connect the APA103 cable to the chip as shown
Connect the other end to the XP400 pro

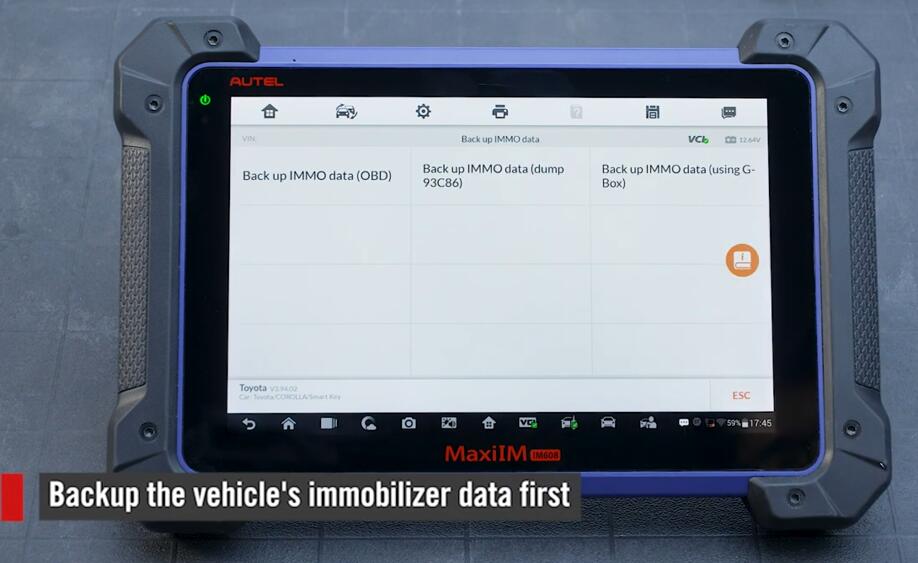

Select Backup Immo Data (Dump)-> Backup Immo Data (93C86)

Save eeprom data



Step 2: Generate emulator key

Select the backed up data file you just saved
Connect the APB112 key simulator cable to the IM608 and XP400 pro

Generate simulator key successfully



Step 3: Add a smart key
Reinstall smart key module back to vehicle
The apb112 emulator key now can start vehicle

Select Add smart key and perform the key learning process
Turn on emergency indicator
Put the emulator key close to the Start button
Put the new key close to the Start button

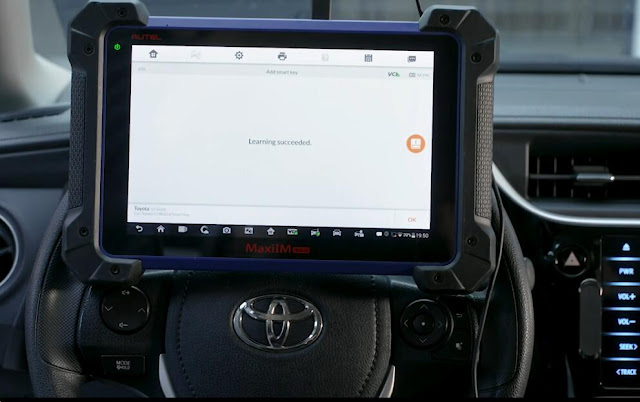

Learning succeeded

Test remote control
The new key is working.
