Autel XP400 Pro Read BMW FRM Without Soldering

 Autel IM508/IM608 with XP400 Pro can easily repair BMW/Mini FRM (Footwell module) corrupted/missing data on bench.



Here is an example but it is in soldering way.

How to Repair BMW FRM3 Module with Autel IM608?

obdii365.com here introduces a new approach to read FRM data without soldering.

Free to test by your side. You are at your own risk.



You will need Yanhua ACDP FRM solder free adapter here

With the solder free adapter you are able to read and write FRM 0L15Y and 3M25J chip data.



Check how to connect ACDP FRM no soldering adapter with Autel XP400 Pro via APA109 adapter.

E81 E82 E88 XE FRM read EEPROM and FLASH done with adapters so no need for soldering on the PCB.

Images attached:

Then follow the regular procedure to read and repair FRM module as blog above.

Autel MaxiIM Adds VAG MQB Toyota 8A-BA IMMO

 Autel MaxiIM series released new SOFTWARE UPDATE :

IM1, IM2, MaxiIM IM608 II, MaxiIM IM608S II, MaxiIM IM508S, MaxiIM IM608Pro II

Toyota 1.80
1. Adds PIN-free functions Add Smart Key and All Keys Lost (with 8A-BA (TMLF19D) Type Smart Main ECU) for models with smart key as of 2022 including Sienna HV, Harrier HV, Tundra HV, and bZ4X.
2. Adds IMMO functions for models as of 2023 including Alphard/Vellfire, Highlander, RAV4, and Corolla.

Lexus 1.80
1. Adds PIN-free functions Add Smart Key and All Keys Lost (with 8A-BA (TMLF19D) Type Smart Main ECU) for models with smart key as of 2022 including NX series and RX series.
2. Adds IMMO functions for models as of 2023 including IS 300, IS 350, LC 500, LS 500, RC 300, RC 350, and ES 350.

VW 1.90
1. Adds MQB NEC35XX type instrument cluster reading & writing function and data decoding function (with XP400 Pro/XP1 Pro and APB130 adapter), supporting chip models including D70F3532, D70F3525, D70F3526, D70F3537, and D70F3529 for
common models such as Arteon (2017- 2021), Golf (2013-2021), Passat (2015-2021), Polo (2015-2021), Tiguan (2018-2021), Touran (2016-2022), Jetta (2018-2021), and T-Roc (2018-2021)

Audi 1.90
Adds MQB NEC35XX type instrument cluster reading & writing function and data decoding function (with XP400 Pro/XP1 Pro and APB130 adapter), supporting chip models including D70F3532, D70F3525, D70F3526, D70F3537, and D70F3529 for common models such as A1 (2019-2021), A3 (2021-2021), Q2 (2017-2021), and Q3 (2019-2021).

Seat 1.90
Adds MQB NEC35XX type instrument cluster reading & writing function and data decoding function (with XP400 Pro/XP1 Pro and APB130 adapter), supporting chip models including D70F3532, D70F3525, D70F3526, D70F3537, and D70F3529 for common models such as Arona (2018-2021), Ateca (2017-2021), Ibiza (2018-2021), Leon (2013-2021), Tarraco (2019-2021), and Toledo (2013-2019).

Skoda 1.90
Adds MQB NEC35XX type instrument cluster reading & writing function and data decoding function (with XP400 Pro/XP1 Pro and APB130 adapter), supporting chip models including D70F3532, D70F3525, D70F3526, D70F3537, and D70F3529 for
common models such as Octavia (2013-2021), Fabia (2015-2021), Superb (2015-2021), Kodiaq (2017-2021), Kamiq (2020-2021), and Rapid (2013-2021).

MaxiIM IM608, MaxiIM IM608 PRO, OtoSys IM600 Update


Toyota 4.40
1. Adds PIN-free functions Add Smart Key and All Keys Lost (with 8A-BA (TMLF19D) Type Smart Main ECU) for models with smart key as of 2022 including Sienna HV, Harrier HV, Tundra HV, and bZ4X.
2. Adds IMMO functions for models as of 2023 including Alphard/Vellfire, Highlander, RAV4, and Corolla

Lexus 4.40
1. Adds PIN-free functions Add Smart Key and All Keys Lost (with 8A-BA (TMLF19D) Type Smart Main ECU) for models with smart key as of 2022 including NX series and RX series.
2. Adds IMMO functions for models as of 2023 including IS 300, IS 350, LC 500, LS 500, RC 300, RC 350, and ES 350.

XP400 Pro Programmer Update

Programmer 4.50
Adds MQB NEC35XX type instrument cluster reading & writing function (with XP400 Pro/XP1 Pro and APB130 adapter), supporting the following chip models: D70F3532, D70F3525, D70F3526, D70F3537, D70F3529, and D70F3524

Read VAG MQB NEC35XX Locked IMMO by Autel IM608

 Autel MaxiIM IM508 and IM608 series recently released VAG MQB NEC35XX locked immo data reading. The function requires XP400 Pro and APB130 adapter.



Compatible with Autel IM508S, IM608 PRO II (IM608 II) IM508, IM608 PRO with XP400 Pro.



Update Information and MQB car, cluster and chip type, check the previous post:

Autel IM508 IM608 Updated VAG MQB48 NEC35XX IMMO

Procedure:

(Images may not clear, never mind, will update later)

Prepare IM508/IM508, XP400 PRO, APB130 adapter, remove and disassemble MQB cluster

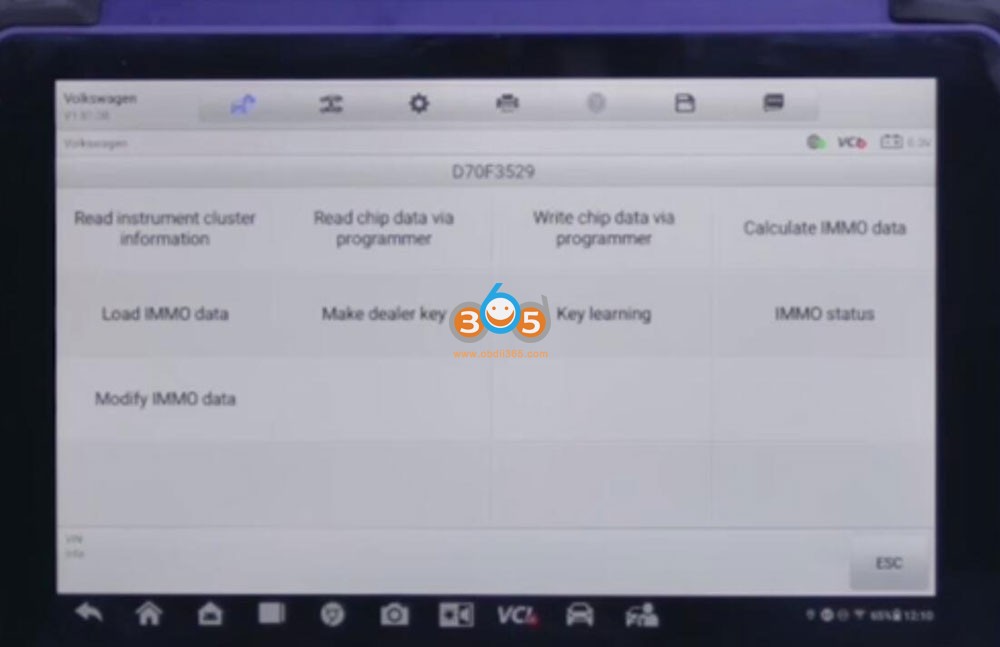

Select VW-> Expert selection->NEC35XX locked (via dump)->chip type, i.e D70F3526-> Read chip data via programmer

IM608 will show you wiring diagram and instructions

Follow wiring diagram to solder mqb cluster (lift pin method here)

Connect apb130 adapter with xp400 pro, connect xp400 pro with im608 via USB cable

Read chip data (takes 5-10 minutes) and save

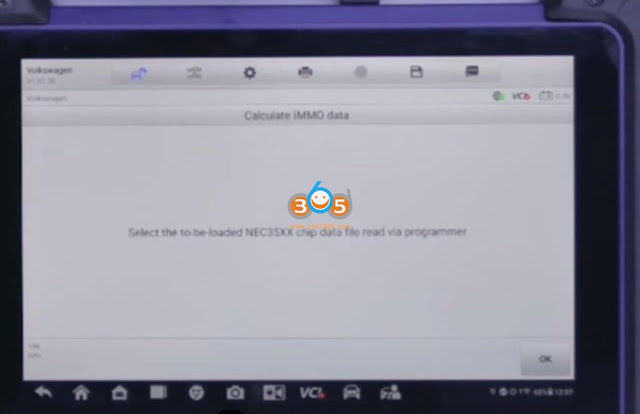

Then Calculate immo data

Upload immo data just saved

Decode immo data

Save new immo data

Now you will get CS, PIN, Mac etc. Then you can make dealer key and learn key with the immo data.

www.obdii365.com

Autel IM608 Program 2022 Subaru Outback All Keys Lost

 Autel supports all smart keys lost function for some models as of 2022 Subaru Outback and Legacy with the large vertical dash screens.

Here is the user working experience on Outback 2020-2022 all keys lost programming:



1.

I was able to program a key using an Autel IM508 along with an APB112 smart key simulator without replacing any parts. I now have a working key which should allow me to use other functions on the IM508 like removing the old keys.

The process is relatively easy. Using manual selection, pick your manufacturer, model, and year range from the menu. Find the Generate Analog Key option in the Immobilizer section and follow the on-screen steps; as long as it let’s you save the EEPROM data you should be good to proceed. Once that is done, it should direct you to connect the APB112 where it will create a simulated key. If that goes well, you can then use the Add Key prompt to create a new key (do not disconnect the APB112 during that process).

For reference, my vehicle is a 2020 Subaru Outback (NA) with the following part numbers:

SMT: 88801AN000
ESCL: 83126AN00B





2.

I programmed key for 2022 subaru outback PTS today with AKL. ESCL and Smart Key Module were replaced with virgin. Programmed with Autel IM608. Still car wont crank. Security light blinks 5 times and then stays illuminated with IGN in ON position. Autel indicated the ECU will permit the car to start. I am thinking these new cars may be a 2 keys system. I am ordering a second key now and will program and see if the security light goes out. This car was also water salvaged and most modules were damaged and replaced.

Updated:

I was able to complete the job with autel. I had to learn the ECM even though it was never changed. Then the car started right up. Maybe it has to do with IMMO and ECU sync.
