Read VW Polo 2016 MQB IMMO Data by Autel IM608 APB130

 It is APB130 adapter from Autel. We are trying to read the data from Volkswagen Polo 2016 MQB NEC35XX locked (processor D70F3526) dashboard with IM608.



Update Information and MQB car, cluster and chip type, check the previous post:

Autel IM508 IM608 Updated VAG MQB48 NEC35XX IMMO



Make all connections to the dashboard.
this is a connection to the dashboard which is connected to the xp400.
there is your ground, positive, yellow and blue cables and there’s little lifted (lift pin method) or a little jumper wire
the white cable go to the chip, it is lifting the pin on the chip that can be hair raised.

You can also break the pin off of it with a little tiny copper wire.
you see it’s actually soldered directly to the pad or the chip
the connectors are all fairly simple. it is all well explained on the diagram where all the wires go. just be more careful
then connect apb130 with xp400 pro, could you add to 12v.

now it read chip data
it takes long time to read dashboard data
the flashing consistency on the green has never changed and she started

Read and save immo data

Once you read the data, it will give you an option to save the data.

Then let’s go to calculate immo data.
Select the MQB file just save and hit OK.
calculating
Save the new immo data.

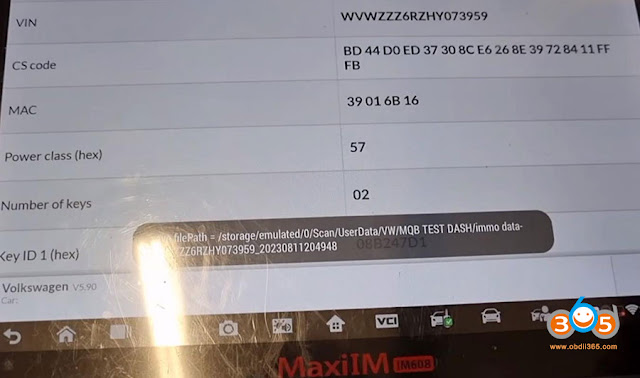

Now you will see your CS code, and key information
The only thing miss is a PIN. This was a dashboard sourced from eBay so no ECU data is available for sync calculations.

if need to make a dealer key you need the ECU 32byte synchronization data which is what you’ll have to send off to 3rs party to get

(How to get MQB sync data)

That is the only way to get the deal to make a dealer key.
