Autel IM608 Program 2015 VW Jetta All Keys Lost via OBD

 This is a 2015 Volkswagen Jetta all key lost situation. We gonna open the cluster assembly.

The first step to more that wedge, screw it out.  Make sure connect Autel MaxiIM IM608 by OBD.

For everything connected you have internet, the battery should be like 12 volts and above.

NOTE: This is a very dangerous situation
If it wasn’t wake up turn on with start button.
If you are not a professional locksmith DO NOT do it.

Autel IM608 Program 2015 VW Jetta All Keys Lost via OBD 1

Autel IM608 Program 2015 VW Jetta All Keys Lost via OBD 2

We’re gonna have Export mode->All keys lost (via dump)

Autel IM608 Program 2015 VW Jetta All Keys Lost via OBD 3

Autel IM608 Program 2015 VW Jetta All Keys Lost via OBD 4

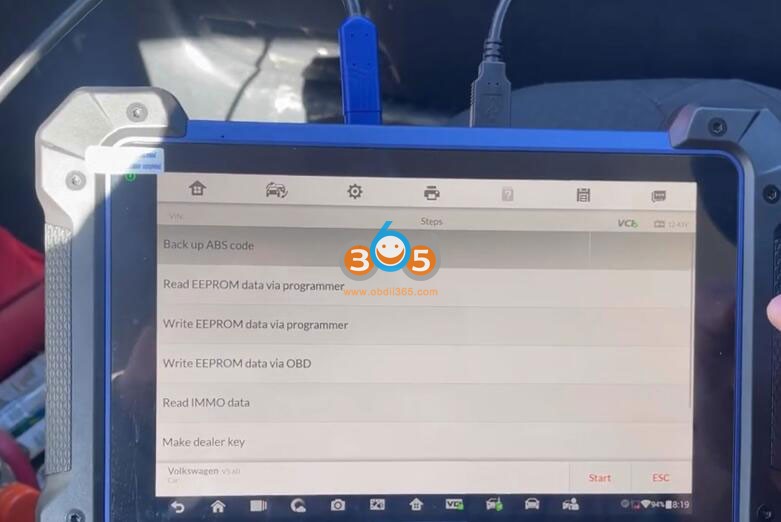

We’re gonna start is going to read the ABS code first.

Press ok and read it’s fails you have to try again.

I get the hazard on that will help.

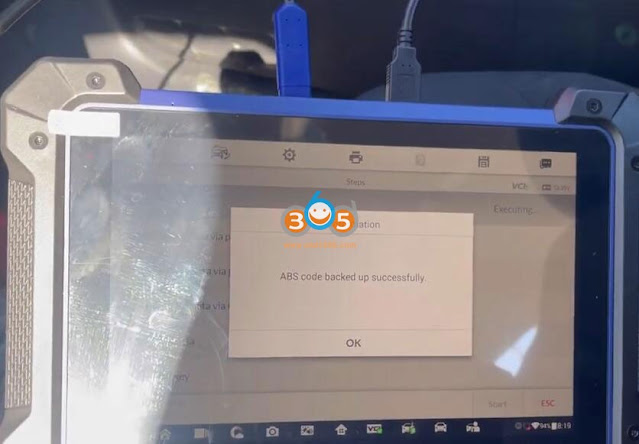

and now it’s successful

Autel IM608 Program 2015 VW Jetta All Keys Lost via OBD 5

Autel IM608 Program 2015 VW Jetta All Keys Lost via OBD 6

Autel IM608 Program 2015 VW Jetta All Keys Lost via OBD 7

press ok

now we’re gonna read the information of the chip with xp400 pro.

Autel IM608 Program 2015 VW Jetta All Keys Lost via OBD 8

now we have to disconnect the cluster take it out.

Autel IM608 Program 2015 VW Jetta All Keys Lost via OBD 9

Autel IM608 Program 2015 VW Jetta All Keys Lost via OBD 10

So don’t damage anything take your time.

I’m gonna open it.

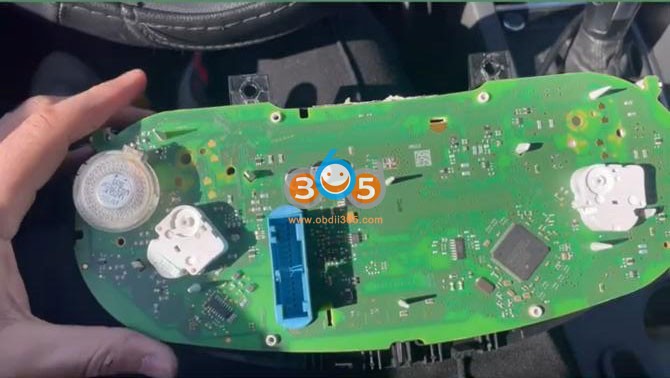

We’re gonna work on the bottom side

so that the chip 24c64.

we’re gonna read it

Autel IM608 Program 2015 VW Jetta All Keys Lost via OBD 11

Autel IM608 Program 2015 VW Jetta All Keys Lost via OBD 12

Autel IM608 Program 2015 VW Jetta All Keys Lost via OBD 13

and it’s really successful.

that’s how you connect to the programmer and successful.



now the next step we have to put it back.

Put everything back

so connect the cluster back.



This push to start not a blade key so that’s a smart key box.

Autel IM608 Program 2015 VW Jetta All Keys Lost via OBD 14

Autel IM608 Program 2015 VW Jetta All Keys Lost via OBD 15

Then you start to write eeprom data via OBD

Read immo data and make dealer key.

Follow Autel im608 instructions until succeed.
