Autel IM608 Program 2020 Chevy Silverado AKL via OBD

 This is a 2020 Chevrolet Silverado with blade key. Here you can add key but the guy said that he wants to erase all the keys, so we are gonna go to all keys lost procedure.

You can add key even if you don’t have a working key on chevy, Adding a key doesn’t delete current keys programmed to the vehicle.

** NOTE:

1.Make sure battery fully charged, this is highly recommended, if battery isn’t fully charged there is a possibility that vehicle won’t start.

2.If it is smart proximity, IM608 won’t calculate security code directly. This is blade key, so it will calculate pin.

How to Calculate GM 24-Digit Security Code by Autel IM508 IM608 Team?

Connect Autel IM608 with USB and enable WiFi connection

Select GM->Automoatic selection

Confirm vehicle information

Autel IM608 Program 2020 Chevy Silverado AKL 1
Select Blade key

Autel IM608 Program 2020 Chevy Silverado AKL 2

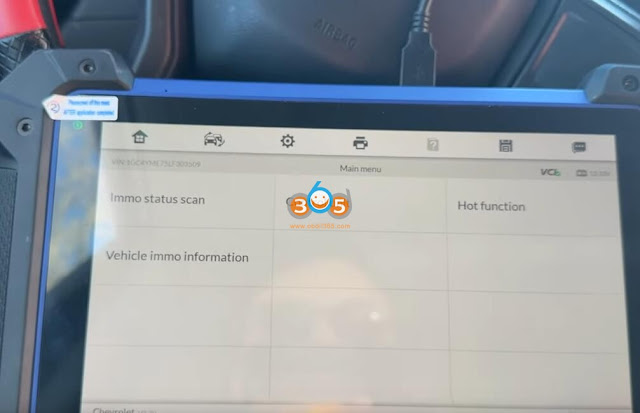

Do a Immo status scan

Autel IM608 Program 2020 Chevy Silverado AKL 3

Autel IM608 Program 2020 Chevy Silverado AKL 4
Turn on ignition switch
Select All keys lost

Follow 3 steps to program key

Step 1: Read PIN

This function requires network connection

Read 4-digit pin successfully.

Autel IM608 Program 2020 Chevy Silverado AKL 5

Autel IM608 Program 2020 Chevy Silverado AKL 6

Step 2: Clear DTC
Step 3: Learn key

Learn key requires 4-digit pin.

Autel IM608 Program 2020 Chevy Silverado AKL 7

Autel IM608 Program 2020 Chevy Silverado AKL 8

Follow IM608 promts to turn ignition on, open/close driver door until key learning completed.

Autel IM608 Program 2020 Chevy Silverado AKL 9
